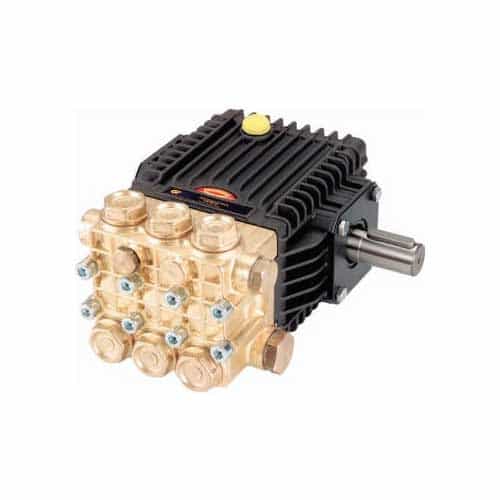

General Pump TX1506S34 Plunger Pump - 2.6 GPM, 3000 PSI
Brand:
Mfr. Model #:
TX1506S34
KR Part #:
GPTX1506S34
Weight:
19.00 lbs
GTIN:
682491119685
Availability:
1
Manuals
This General Pump has a new generation seal system that allows for a longer life.
NOTE: This is a clearance item with limited inventory. All sales final - no returns.
Technical Specifications
Max PSI: 3000
RPM: 3400
Bore: 15 millimeter
Crankcase Capacity: 14 ounce
Inlet Port: 1/2 inch
Max Temperature: 165 degrees F
Shaft Diameter: 24 millimeter
Stroke: 6.5 millimeter
Type: Pump
Product Description
3000 PSI General Pump
This 3000 PSI General Pump series has a flex coupling and bell housing that is available for
This is a clearance item with limited inventory. All sales final - no returns.
Dimensions: 8.4" x 8.3" x 4.8"
- Triplex Plunger Pump
- Forged brass manifold with exclusive lifetime warranty
- Long life low and high-pressure seals
- Oversized roller bearings and sight glasses
Specifications:
- Max Volume: 2.6 GPM
- Max Discharge Pressure: 3000 PSI
- Max Pump Speed: 3400 RPM
- Max Inlet Pressure: 125 PSI
- See more under the Specifications tab
