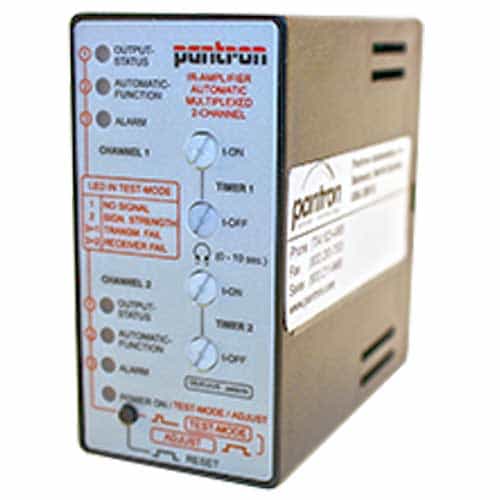

Pantron IMX-A2034 Infrared Photoelectric 2-Channel Multiplexer, 24VDC
Brand:
Mfr. Model #:
IMX-A2034/24VDC
KR Part #:
PPSM2034-24DC
Weight:
0.25 lbs
Usually Ships in 2 Weeks
The Pantron IMX-A2034 is a photoelectric 24Vdc 2-channel multiplex amplifier with automatic gain setting. It offers four level settings, has a one relay output for each channel, and has a detection range of up to 131'.
Technical Specifications
Max Temperature: 140 F
Min Temperature: -13 F
Product Description
Photoelectric 24Vdc 2-Channel Multiplexer
From Pantron, this is a high-performance photoelectric multiplexer perfect for car wash automatics bays. Four level settings allow for operation over a variety of distances and conditions. Features a test mode to display accurate information about sensor alignment and wiring. The detection range is a comprehensive 131' and an automatic transmit power adjustment is available. There's a test function and diagnostic option, as well.
Specifications:
- Voltage DC: 24
- Max Temperature: 140 F
- Min Temperature: -13 F
- Detection Range: 40 m (131')
- Automatic transmit power adjustment
- One relay output per channel
- 4 level settings for adjustment over different distances
- Switchable light / dark modes
- Test functionality
- Delay timer
