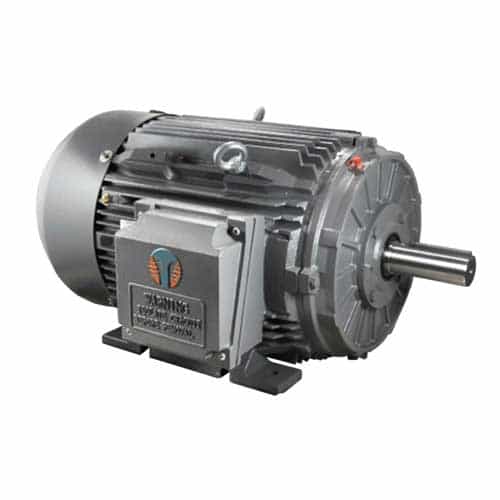

Cast-Iron General-Purpose Motor- 15 HP, 3 Phase, 230/460V

Engineered for 230/460 Volts, produces 15 horsepower and has a 3-phase motor. Can reach 3600 RPM. Designed with NEMA energy efficiency standards in mind. Great general-purpose use. Contains a 90° rotatable - full rubber gasket conduit box. Motor is ambient temperature rated for 40° Celsius. Techtop offers a manufacturer's 36-month warranty for after the purchase date.

Features:

• NEMA Premium Energy Efficiency Design
• MG1 Part 31 Compliant for VFD use (15:1 CT)
• 2-Part Epoxy Coating - IP 55 Ingress Protection
• 1045 Steel Shaft (through 326T), 4140 (326T & up)
• Multi-mount Frame Design up to 360T (F1,F2,F0)
• Auto-purge Brass Condensation Drains
• 1.25 Service Factor to 50HP (1.15 for larger frames)
• DE and ODE Oversized Bearing Size
• Zerk fitting Regreasable Bearings 254T & Larger
• 90° Rotatable - Full Rubber Gasket Conduit Box
• Double Lip Shaft Seal Protection on DE & ODE
• VPI -Tropicalized- Lap-wound-Class H Stator
• Heavy-Duty Cast-Iron Fan Cover
• Oversized-Color Coded -Tagged - Class F Leads
• Rubber Shaft Slinger for Vertical Application
• Interchangeable C & D Flanges Available
• Class 1, Div 2, Groups A, B, C & D Certified
• EISA Regulation Compliant
• 40°C Ambient Temperature Rating
• 36 Month Warranty from Purchase Date
• Arc Arrestor Shaft Grounding (GX3 Only)
• ODE Hybrid Ceramic Bearings (GX3 Only)

Specifications:

• HP: 1 - 500
• Pole: 2/4/6
• Frame: 143T- 449T
• Volt: 208-230/ 460V
• RPM: 3600/1800/1200
• Body: T / TC
