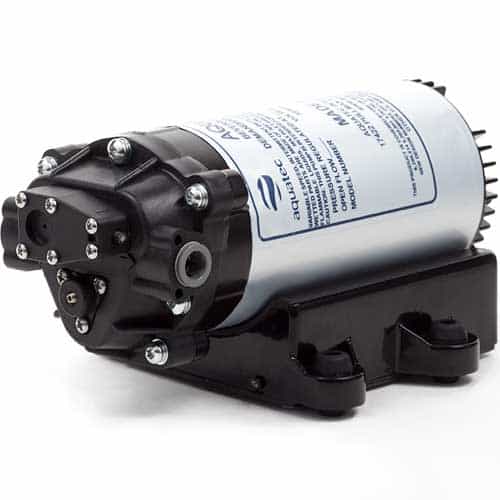

Variable Speed Diaphragm Pump

This Aquatec Smart Pump features a state-of-the-art digital controller designed to maintain a constant pressure within 2 PSI when the flow rate variates. Incorporates a transducer that monitors pressure changes adjusting the speed to operate within a set range. Used for applications with long hose lengths that require variable flow rates such as multiple fixtures drawing fluid from a single source. Also, used for beverage and drinking water delivery applications.

Specifications:

• Diaphragm Materials: Santoprene

• Housing Material: Polypropylene

• Inlet Pressure: 60 PSI

• Liquid Temperature: Max 140 °F

• Motor Rpm: 1600 RPM

• Pressure Switch: 60 PSI

• Push-In Size: 3/8" OD

• Series: 5800

• Suction Lift: Self-prime up to 9 ft

• Wire Option: Wall Plug

• Flow Rate: 0.1-1 GPM

• Type: Diaphragm Pump

• Voltage: 115VAC


Dimensions:

• Height (inches): 5.25

• Length (inches): 9.5

• Weight (lbs): 6.213

• Weight: 7.61 lbs


Features:

• 60 PSI Standard Setting

• 3/8" Quick Connect John Guest

• 3 Chamber

• For tubing that runs over 30 feet

• 6 Ft. Line Cord

• Constant pressure across multiple outlets

• No accumulator tanks required

• Reduces system bacteria

• Reduces space requirements

• No pressure switches required

• Less system service required

• Plug-and-play performance


Applications:

• Beverage Delivery

• Drinking Water Delivery

• Long Hose Lengths

• Variable Flow Rates

• Multiple Fixtures Drawing Fluid from A Single Source
