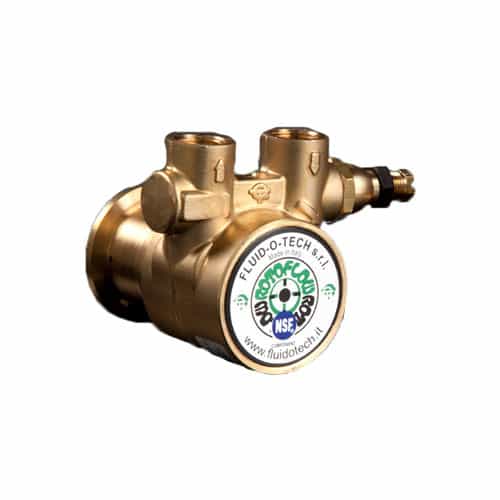

Fluid-o-Tech PA201 Brass Rotary Vane Pump - 290 PSI
Brand:
Mfr. Model #:
PA201
KR Part #:
FTPA201
Weight:
2.50 lbs
Usually Ships in 2 Weeks
The Fluid-O-Tech PA201 is a brass body rotary vane pump that uses carbonator clamp mounting with steel V-bands to mount the pump directly to the motor. Designed for pumping water and moderately aggressive liquids with low flow rates at high pressure levels. It boasts a stainless steel shaft, carbon graphite vanes, and Buna seals. For industrial-related applications, the PA201 is used for water treatment, reverse osmosis, and cooling systems. Since it meets NSF standards, it also works well for espresso coffee machines and soda/beer/water beverage dispensing.
Technical Specifications
Inlet Port: 3/8 inch
Max PSI: 290
Product Description
NSF Standard Rotary Vane Pump with Carbonator Clamp Mount
The Fluid-O-Tech PA201 Pump is a brass body rotary vane pump with a stainless steel shaft, carbon graphite chamber/vanes, and Buna-N seals. It employs carbonator clamp type mounting, which uses a steel V-band clamp to connect the pump directly to the motor. Includes a standard relief valve, but DOES NOT include a strainer.
The PA201 is corrosion resistant and handles water and moderately aggressive liquids. On the industrial side, this pump is used car reverse osmosis, water treatment, car wash water treatment, and cooling systems. It's also important to note that the PA201 meets NSF standards and is very commonly used in espresso machines, beverage vending machines, and water dispensers.
Fluid-O-Tech PA201 Specifications
- Maximum Pressure: 290 PSI
- Maximum Flow Rate: 64 GPH
- Inlet and Outlet Port Connections: 3/8" FNPT
- Maximum Temperature: 158° Fahrenheit
- Minimum Temperature: 23° Fahrenheit
- Maximum Speed: 1725 RPM
- Mounting Type: Carbonator clamp mount
- Body Material: Brass
- Vane and Chamber Material: Carbon graphite
- Shaft: 1/8" stainless steel
- Seal Material: Buna-N nitrile rubber
- Includes standard relief valve
- Meets NSF standards
- Compatible Motor Frames: 48Y NEMA, 56C NEMA, M71, M80 IEC
Ideal Applications
- Water Treatment/Reverse Osmosis
- Car Wash
- Espresso Coffee Machines
- Beverage Vending Machines
- Water Dispensers
- Cooling Systems
- Post Mix Drink Dispensers
Fluid-O-Tech Espresso Pump
Espresso machines require more pressure than a regular coffee machine to push water through tightly packed coffee grounds. Rather than use manual force, a rotary vane pump is used to achieve this pressure requirement. A disc spins and pushes the vanes into the wall of the chamber, at which time water enters the chamber. As pressure builds, the water is forced out of the pump and through the coffee grounds to create espresso! The Fluid-O-Tech PA201 is ideal for this application, as it meets the pressure needs for many espresso machines and is NSF certified.
