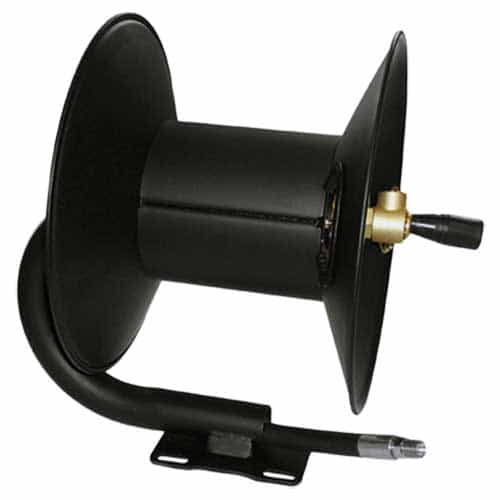

200’ Capacity MTM Hydro Hose Reel

If you want a reliable hose reel that resists corrosion, purchase the MTM Hydro hose reel 27.0007. This reel is made with a steel frame with a powder coating to protect it from corrosive forces. Hand crank rotates smoothly making it easy for the operator to use. Plus, it has a locking mechanism to prevent the hose from unwinding. This MTM Hydro hose reel is recommended for cold water use only. It withstands a maximum fluid temperature of 140°F and a maximum pressure of 4000 PSI. Mounting hardware is not included. Before leaving your hose reel unattended, always engage the locking mechanism on the side of the reel.

Specifications:

• Maximum Pressure: 4000 PSI
• Capacity: 200’ of 3/8” Hose
• Connections: 3/8" NPTM - 9" Pigtail x 3/8" NPTF
• Maximum Temperature: 140°F
• Frame: Steel
• Finish: Powder Coated
• Base to Center of Core: 10"
• Mounting Bracket: 4 slots - 4.25" W x 3.375" D
• Hole Diameter: 0.375" x 2.2" Slot
• Pin Lock: Yes
• Mounting Hardware: None
• Height: 16.5”
• Width: 20.5”
• Depth: 13.5”
• Wall Width: 16”
• Core Width: 12.5”
• Core Diameter: 5.5”

Installation Instructions:

• Slide the swivel end of the hose through the opening side of the reel core and install the 3/8" Male NPT threads into the 3/8" Female NPT threads of the swivel.
• Do not make a Quick Coupling joint at the swivel as there is not enough space and the bend in the line is too severe.
• Allow a small amount of slack at the swivel joint.
• Use the red hose fastener provided to secure the hose at this joint.
• Using a Whip Line connected to your pump, connect to the hose reel inlet.
• When planning, add an extra foot to the distance so as not to bend the Whip Line too severely.
• Install the handle with the hardware provided.
