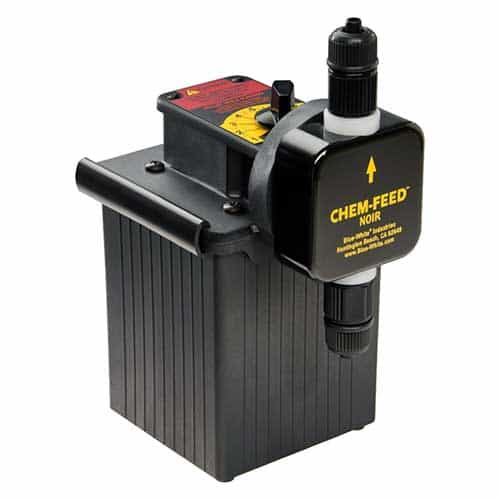

Blue-White C15N202X000V00 Chem-Feed Diaphragm Metering Pump - 26.6 GPD, 125PSI
Brand:
Mfr. Model #:
C15N202X000V00
KR Part #:
BW15N202X000V
Weight:
8.00 lbs
Usually Ships in 3 Weeks
The standard Blue-White Chemfeed C-1500N model features quick adjustment and high accuracy mechanical stroke length control for convenient and reliable operation.
Technical Specifications
Max PSI: 125
Max Temperature: 130 degrees F
RPM: 45
Voltage AC: 115
Max GPM: .018
Product Description
Chem-Feed Fixed Speed Diaphragm Metering Pump
An efficient diaphragm metering pump featuring a quick adjusting, high accuracy mechanical stroke length control for easy usage and reliable operation. Pump design is ideal for a minimum stroke length of 5%, with the minimum recommended output being 5% of the maximum. Lubricated gear motor facilitates smooth and quiet operation. Features a durable PVDF-constructed pump head, valve body and fitting as well as ceramic balls, FKM and TFE/P o-rings, and a PTFE-coated EP diaphragm.
Dimensions: 4.500" W x 9.062" H x 5.750" D
Specifications:
- Max Pressure: 125 PSI / 8.6 bar
- Max GPD: 26.2
- Max Temperature: 130° F / 54° C
- Max Ambient Temperature: 14 to 110° F / -10 to 43° C
- Max Viscosity: 1000 Centipoise
- Max Suction Lift: 10' Water 0 psig
- Continuous Duty
- Max Motor RPM: 45 RPM
- Power Supply: 115V / 60 Hz
- Cam Stroke Length: .055"
- Output Control and Electrical: Standard equipment
- Pump Head: Injection molded PVDF
- Pump Head Style: Large diaphragm
- Diaphragm Style: Large PTFE/EP
- Elastomer Material: Viton
- Injection Fitting: A-014N (Polypropylene - 1/2 lb spring)
- Foot Valve: C-340 (PVDF/Polypropylene)
