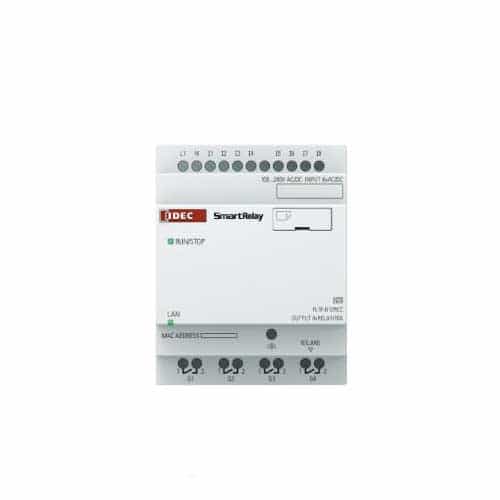

Triple Foam Systems Relay

Expertly manage your triple foam system with this high-quality smart relay. Controlling, monitoring, and logging information for your car wash foaming system is made easy by setting up an Ethernet network that allows multiple relays to communicate with each other. Equipped with a micro SD card for reliable data storage. Module can be accessed remotely using free iOS and Android applications available for smartphones.

Module Highlights

• 24 volt AC/DC power source
• Embedded RJ45 Ethernet Port
• Remote program download, upload and monitor
• Integrated web server for remote monitoring and control

Micro SD Card

• Equipped with micro SD slot for program storage, transfer and data logging
• No need for a special memory cartridge

Data Logging

• Up to 20,000 lines in a file with a maximum of 50 files can be stored in the Micro SD Memory card

Integrated Web Server

• Easily monitor and control web pages with no HTML knowledge
• Instant monitoring and control using standard web browser like Chrome, IE and Firefox
• View and control I/O status, timer, counters, analog set point and more

Mobile Phone Apps

• Download iOS and Android App for free
• Using the SmartRelay App, users can view and control any I/O status, timer, counters, and analog set point anywhere and at any time

1:N Communication

• FL1F SmartRelays now have the capability to communicate with each other over an Ethernet network
• Up to 16 FL1F SmartRelays can be configured on the network
