Original X-Jet 20K Fixed External Chemical Injection Nozzle - 8 GPM

Brand:
Mfr. Model #:
XJET-20K
KR Part #:
XJET-20K
Weight:
2.60 lbs
Usually Ships in 2 Weeks
MSRP
$169.00
Now Only!
$135.20
Downstream chemical injector that allows you to safely spray pressure washing chemicals 40' or more. Avoid running potentially damaging chemicals and detergents through your pressure washer. This model is designed for pressure washers with flow rate up to 8 GPM and operating pressures from 2500 to 4000 PSI.



Technical Specifications

Max Temperature: 190 degrees F
Inlet Port: 1/4 inch
Max GPM: 8
Max PSI: 4000

Product Description

High Flow Injection Nozzle

X-Jet CloseupKeep chemicals out of your water supply and pressure washer by adding on the XJET-20K nozzle! This easy to use nozzle attaches to both your pressure washer wand and its own special X-Jet suction hose (included). It is specially designed for use with pressure washing machines producing a flow rate over 8 GPM.

As pressurized water exits your spray lance, passing through the X-Jet nozzle, the suction hose draws and proportions the appropriate amount of chemical from a separate tank. The mixing happens in the nozzle!

Dimensions: 3.78" x 0.87" x 2.0"

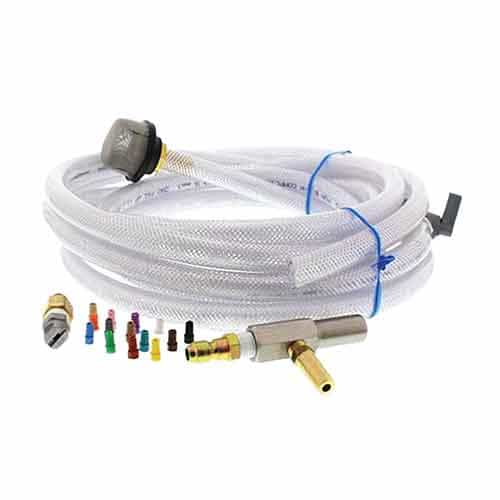

Includes:

  • 15 foot X-Jet Suction Hose with hose barb
  • Long range nozzle
  • Low pressure close range nozzle
  • Quick connect plug
  • 15-piece color coded proportioner tip set
  • Shut off ball valve
  • Mushroom strainer

Additional specifications:

  • Fixed long and close range spray patterns
  • 8 GPM maximum flow rate (optimal flow rate is 7-8 GPM)
  • Maximum pressure: 4000 PSI (Optimal Operating Pressure Range: 2500-4000 PSI)
  • Maximum temperature: 190° F
  • Inlet: 1/4" quick connect plug
  • Chemical port: 1/8" MPT x 3/8" hose barb
  • Projects chemicals up to 40 feet or more depending on pressure washer
  • Apply soap and rinse with same nozzle - just remove chemical suction tube
  • Great for power washing houses and other residential pressure washing tasks!
  • Weight: 4 lbs.
  • X-Jet item #XJET-20K
  • Replacement nozzle available; part #XJET-20K-N
  • You must select the X-Jet model with the appropriate flow rate and pressure rating for your pressure washer. SEE ALL X-JETS BY CLICKING HERE.
