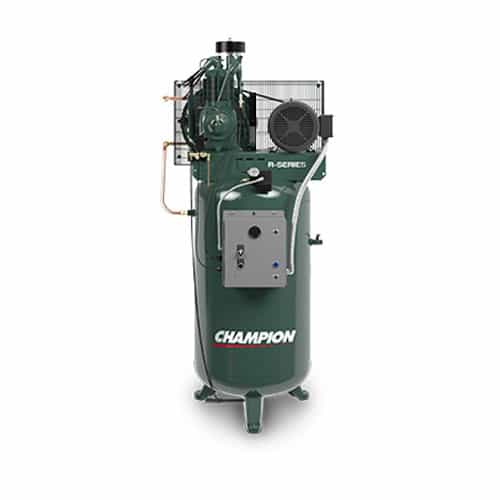

80 Gallon 7.5 Horsepower Vertical Air Compressor

The Champion VR7F-8 air compressor is part of the R-Series line that features time-tested, reliable designs. These compressors deliver high performance, long life, and incredible value.

The VR7F-8 compressor is a 7.5 horsepower, three phase, 230 volt machine with an 80 gallon capacity tank. Backed by the proven quality of Champion engineering, this air compressor is useful for inflating tires, powering pumps, operating pneumatic tools, and more!

Specifications:

• Horsepower: 7.5HP

• Voltage: 230V

• Tank Option: 80 gallon

• Tank Orientation: Vertical

• Pump Drive: Belt

• Cooling System: Air-cooled

• Drain Type: Manual

• Pump Model: R-15B

• Pump RPM: 990 RPM

• Pump Type: Splash-lubricated

• Open drip-proof motor

• EISA high-efficiency motor

• Motor Speed: 1800 RPM

• Three phase

• Starter: Mounted

• Control: Start/Stop

• Set Pressure: 175 PSI

• NEMA: 1

• 23.1 CFM at 125 PSI

• 23.9 CFM at PSI

• Weight: 635 pounds

Dimensions:

• 33" (L) x 24" (W) x 77" (H)

Features:

• ASME coded receiver

• ASME inter-stage pressure relief valve for protection

• Load-less centrifugal unloader; lower energy costs and less wear on drive motor

• 10 Micron industrial-grade intake filter

• Multi-finned cylinders for cooler operating temperatures

• Integral cylinder/head design for trouble-free operation

• Balanced pistons

• Piston rings provide excellent oil control and high-efficiency

• Lightweight two-piece connecting rods

• Pressure relief valves

• Larger diameter finned intercoolers

• Optimized cooling fan/flywheel

• Reliable high-flow disc valves

• Tapered roller main bearings

• Balanced crankshaft

• Large capacity cast-iron crankcase

Uses:

• Pumps

• Tools

• Cleaning devices

• Tires
