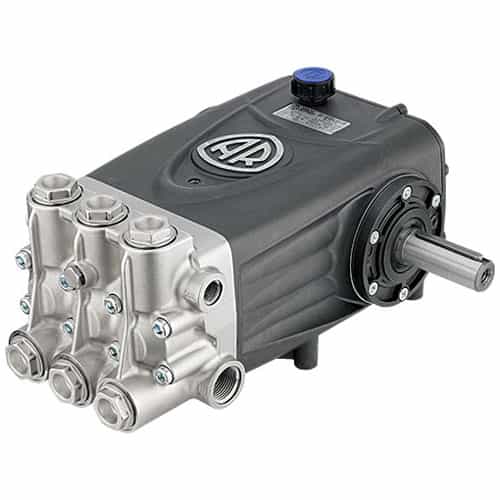

AR North America RTX70 Triplex Plunger Pump - 18.5 GPM, 2000 PSI, 1450 RPM
Brand:
Mfr. Model #:
RTX70
KR Part #:
ARTX70
Weight:
72.00 lbs
Usually Ships in 2 Weeks
Manuals
3-piston, alternating volumetric design perfect for industrial use!
Freight Only
Technical Specifications
RPM: 1450
Bore: 30 millimeter
Crankcase Capacity: 76 ounce
Inlet Port: 1 inch
Max GPM: 18.5
Max PSI: 2000
Max Temperature: 140 degrees F
Stroke: 23 millimeter
Product Description
2000 PSI Pump
The AR North America RTX70 is a reliable triplex plunger pump delivering up to 1450 RPM and 18.5 GPM. The pump is designed for maximum longevity, including a high-strength steel pump shaft and low friction zinc-aluminum alloy connecting rods. Easily connect it to your system via the 1" female inlet and 1/2" female outlet - it's a great choice for industrial cleaning applications!
- Maximum flow: 18.5 GPM
- Maximum pressure: 2000 PSI
- Maximum speed: 1450 RPM
- Maximum temperature: 140° F
- Oil capacity: 76 oz.
- Stroke: 23 mm
- Bore: 30 mm diameter
- Three-piston plunger design
- Inlet: 1" female
- Outlet: 1/2" female
- Die-cast aluminum alloy pump body and cover
- Rear cover features oil drain outlet
- High-strength steel shaft
- Oversized friction bearings
- One-piece ceramic pistons
- Double gasket sealing system
- Intake and delivery valve plugs
- AR North America item #RTX70
- Weight: 72 lbs.
