Short Tail Detach Base Float Valve

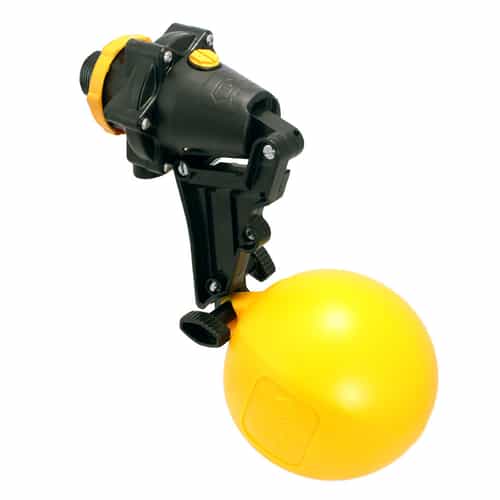

The Jobe Valves J-TPV1D has a short tail, a 1" NPT inlet, and a detachable base. The valve body and tail are made with glass-filled-nylon and it has nitrile o-rings, a urethane seal, and an EPDM diaphragm. Maximum operating temperature of 140 degrees Fahrenheit and a pressure rating from 5-100 PSI.

Jobe Valves Topaz Trough Valves are float-operated water valves used for automated filling of water troughs, storage tanks, cisterns, and more. They are  configured so that they can be mounted either above or under water. The float flips a small pilot valve that operates the principal diaphragm valve. Capable of withstanding excessive movement, non-corrosive, and easily adaptable; a smart choice for your water system.

Specifications:

• 1" NPT inlet
• 5-100 PSI maximum pressure
• Short tail - 1" thread and locking ring (Long tail available: JFVTS16)
• Detachable base
• 140 degrees Fahrenheit max operating temperature

Material Construction

• Valve Body & Tail: Glass filled nylon
• Internal Parts: Acetal
• Filter: Polypropylene/nylon
• Diaphragm: EPDM
• Seal: Urethane
• Float Cord: Polyester
• Springs, Pins, Nuts, Pin, Screws: 304 stainless steel
• O-rings: Nitrile
• Float: HDPE
• Actuator/Arms & Caps: ABS

Features:

• High flow
• Compact robust construction
• Mounts horizontally or vertically
• Made from corrosion resistant materials
• 20-60 mm (3/4" - 2 1/2") water level differential
• Easily adjustable with no tools
• Switch to lock the valve in off position
• Has port to connect Frostpro anti-freeze device

Dimensions:

• 6" X 8" X 9"

UPC:

• 9418817307235

Applications:

• Car washes
• High-pressure cleaning systems
• Water storage tanks
• Irrigation
• Water cisterns
• Air conditioning systems
• Animal drinking troughs
