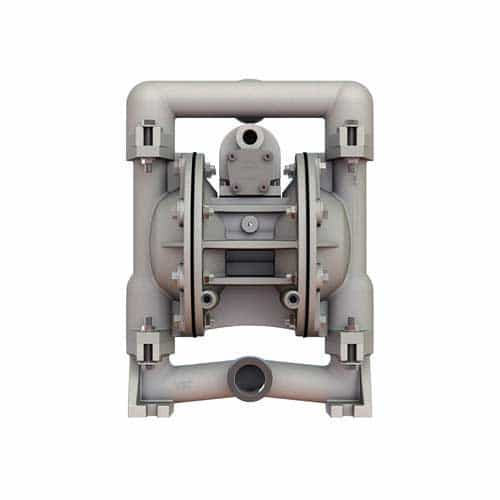

Versa-Matic E1AA2R229C-ATEX Aluminum E-Series Bolted Air Diaphragm Pump with Buna-N - 1 in. Ports, 49 GPM
Brand:
Mfr. Model #:
E1AA2R229C-ATEX
KR Part #:
VME1AB
Weight:
22.00 lbs
Usually Ships in 2 Weeks
Versa-Matic E1AA2R229C-ATEX features a durable aluminum body and an Elima-Matic air valve system to provide lube-free, non-stalling performance. This double diaphragm pump is operated by air power.
Technical Specifications
Inlet Port: 1 inch
Max GPM: 46
Max PSI: 125
Max Temperature: 180 degrees F
Product Description
E1 Metallic AODD Pump - 49 GPM
The air-powered Versa-Matic E1AA2R229C-ATEX pump is a double diaphragm pump made with an aluminum body and Buna-N inner components. It has a 1" NPT suction inlet, a 1" NPT discharge outlet, and provides a max flow rate of 49 GPM. This pump reliably and safely transfers fluids and chemicals with corrosion-resistant and bolted leak-free construction. ATEX Certified.
Specifications:
- Maximum Flow Rate: 46 GPM
- Suction Port: 1" NPT
- Discharge Port: 1" NPT
- Aluminum construction body
- Maximum Discharge Pressure: 125 PSI
- Maximum Temperature: 180° Fahrenheit
- Air Inlet: 3/8" NPT
- Air Exhaust: 1/2" NPT
- Dry Suction Lift: 15'
- Wet Suction Lift: 31'
- Diaphragm: Nitrile (Buna-N)
- Check Type: Nitrile (Buna-N) ball valve
- Seat: Aluminum/Nitrile (Buna-N) O-ring
- Dimensions: 14.54" H x 10.72" W x 9.33" D
- Maximum Noise Level: 91 dB
