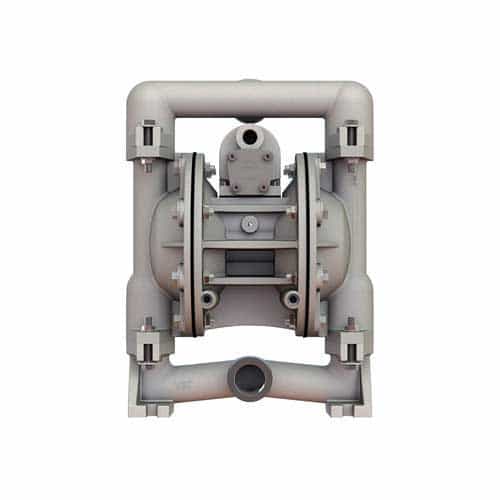

Versa-Matic E1AA5T559C-ATEX Aluminum E-Series Bolted Air Diaphragm Pump with PTFE - 1 in. Ports, 36 GPM
Brand:
Mfr. Model #:
E1AA5T559C-ATEX
KR Part #:
VME1AT
Weight:
22.00 lbs
GTIN:
814338026294
Usually Ships in 2 Weeks
Aluminum-body double diaphragm pump operated by air power. Features 1/2" suction/discharge.
Technical Specifications
Inlet Port: 1 inch
Max GPM: 36
Max PSI: 125
Max Temperature: 220 degrees F
Product Description
Aluminum Body PTFE Diaphragm Pump
The Versa-Matic E1AA5T559C-ATEX pump is an air-powered double diaphragm pump made with aluminum and PTFE inner components. It has a 1" NPT suction inlet, a 1" NPT discharge outlet, and a max flow rate of 36 GPM. Reliably and safely transfer fluids and chemicals with this corrosion-resistant pump with bolted leak-free construction.
Specifications:
- Maximum Flow Rate: 36 GPM
- Suction Port: 1" NPT
- Discharge Port: 1" NPT
- Aluminum construction body
- Maximum Discharge Pressure: 125 PSI
- Maximum Temperature: 220° Fahrenheit
- Air Inlet: 3/8" NPT
- Air Exhaust: 1/2" NPT
- Dry Suction Lift: 15'
- Wet Suction Lift: 31'
- Diaphragm: PTFE
- Check Type: PTFE ball valve
- Seat: PTFE O-ring
- Dimensions: 14.54" H x 10.72" W x 9.33" D
- Maximum Noise Level: 91 dB
