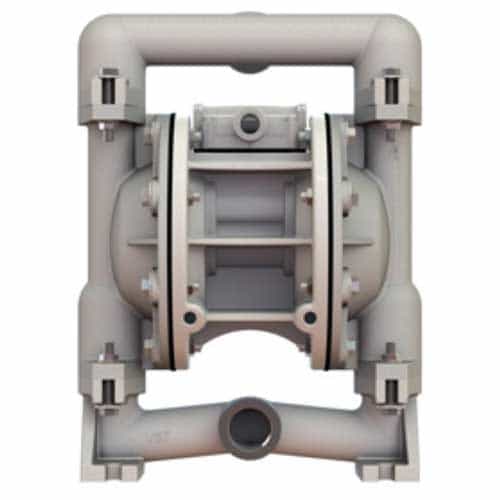

Versa-Matic E-Series Bolted 1 in. Stainless Steel Pump with PTFE Diaphragm
Brand:
Mfr. Model #:
E1SP5T559C
KR Part #:
VME1ST
Weight:
36.00 lbs
GTIN:
814338026379
Usually Ships in 2 Weeks
This pump features a 1" port size, stainless steel construction, PTFE diaphragm, and maximum flow of 36 gpm.
Technical Specifications
Max Temperature: 220 degrees F
Max GPM: 36
Max PSI: 100
Inlet Port: 1 inch
Product Description
36 GPM Metallic Bolted Pump
The E1-Series 1" bolted pumps offer excellent chemical resistance and long term reliability. The leak-free bolted construction provides great sealing capabilities when pumping thin liquids. The exclusive unbalanced air valve delivers exceptional on / off / on reliability, and the air valve can be easily refurbished.
Dimensions: 10.72" width x 9.33" depth x 14.54" height
- Maximum flow rate: 36 GPM (136 LPM)
- Maximum discharge pressure: 100 psi (6.9 bar)
- Maximum required air inlet pressure: 100 psi (6.9 bar)
- Maximum air consumption: 35 SCFM (59 CMPH)
- Maximum temperature: 220 degrees F (105 degrees C)
- Stainless steel wetted material
- PTFE seat, ball, and diaphragm
- Polypropylene non-wetted material
- Port size: 1" (25.4 mm)
- Versa-Matic model # E1SP5T559C
