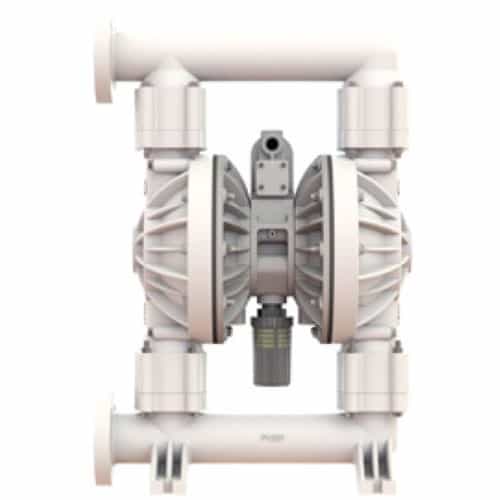

Versa-Matic E-Series Bolted 2 In. Polypropylene Pump with PTFE Diaphragm - 145 GPM
Brand:
Mfr. Model #:
E2PA5T5T9C
KR Part #:
VME2PT
Weight:
69.00 lbs
GTIN:
814338026249
Usually Ships in 2 Weeks
This Versamatic 2" diaphragm pump from the E2 Series is ideal for transferring water and chemical solutions at a high flow rate up to 145 GPM. This compact AODD pump has a polypropylene and aluminum body with a 2-piece PTFE diaphragm, providing excellent versatility and chemical resistance. Like other models from the E2 line, it features a non-stalling, non-freezing, and lubrication-free air valve system.
Technical Specifications
Max GPM: 145
Max PSI: 100
Max Temperature: 175 degrees F
Inlet Port: 2 inch
Product Description
Versamatic E2 Pump
The Versa-Matic E2PA5T5T9C E-Series pump is designed for durability. It features a polypropylene and aluminum body with two-piece PTFE diaphragm. Plus, it has an adaptable footprint that makes it easier than ever to use this pump within an existing configuration. The E2 Elima-Matic pump can achieve a maximum flow rate of 145 GPM and has a maximum discharge pressure of 100 PSI.
Specifications:
- Port size: 2"
- Flow range: 0 - 145 GPM
- Discharge pressure range: 0 - 100 PSI
- Required air pressure range: 0 - 100 PSI
- Air consumption range: 0 - 120 SCFM
- Temperature range: 32° - 175° Fahrenheit
- Stroke displacement: 0.34 gallons
- Solids handling: 0.25" / 6.35mm
- 2 piece PTFE diaphragm
- PTFE ball-type check
- Polypropylene seat
- Polypropylene (wetted) and aluminum (non-wetted) body
- Weight: 69 lbs.
- Versa-Matic item #E2PA5T5T9C
- Dimensions: 30.25" x 15.07" x 12.01"
Common Applications Where Versamatic 2" E2 Series Diaphragm Pumps Are Used
- Car Wash
- Ceramics
- Chemical
- Construction
- Food and Beverage
- General Manufacturing
- Marine
- Mining
- Oil and Gas
- Paints and Coatings
- Pharmaceutical
- Wastewater Treatment
