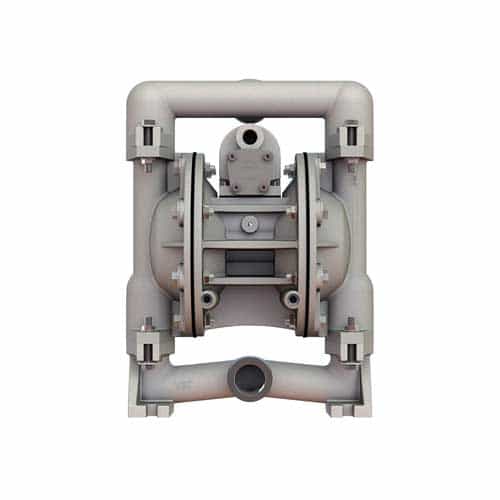

Versa-Matic E5AA2R229C Aluminum E-Series Bolted Air Diaphragm Pump with Buna-N - 1/2 in. Ports, 12 GPM
Brand:
Mfr. Model #:
E5AA2R229C
KR Part #:
VME5AB
Weight:
11.00 lbs
GTIN:
814338026256
Usually Ships in 2 Weeks
Technical Specifications
Inlet Port: 1/2 inch
Max GPM: 12
Max PSI: 125
Max Temperature: 180 degrees F
Product Description
Buna-N Diaphragm Pump - 1/2"
The Versa-Matic E5AA2R229C pump is an air-powered double diaphragm pump made with aluminum and Buna-Nitrile inner components. It has a 1/2" NPT suction inlet, a 1/2" NPT discharge outlet, and a max flow rate of 12 GPM. Reliably and safely transfer fluids and chemicals with this corrosion-resistant pump with bolted leak-free construction.
Specifications:
- Maximum Flow Rate: 12 GPM
- Suction Port: 1/2" NPT
- Discharge Port: 1/2" NPT
- Aluminum construction body
- Maximum Discharge Pressure: 125 PSI
- Maximum Temperature: 180° Fahrenheit
- Air Inlet: 3/8" NPT
- Air Exhaust: 3/8" NPT
- Dry Suction Lift: 13'
- Wet Suction Lift: 22'
- Diaphragm: Nitrile (Buna-N)
- Check Type: Nitrile (Buna-N) ball valve
- Seat: Aluminum/Nitrile (Buna-N) O-ring
- Dimensions: 10.05" H x 8.39" W x 6.25" D
