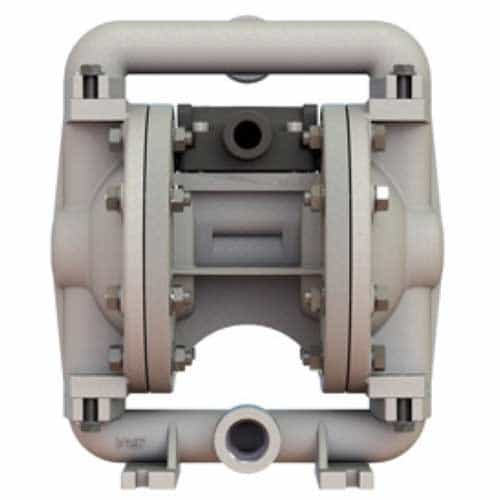

Versa-Matic E-Series Bolted 1/2 in. Stainless Steel Pump with PTFE Diaphragm
Brand:
Mfr. Model #:
E5SP5T559C
KR Part #:
VME5ST
Weight:
17.00 lbs
GTIN:
814338026355
Usually Ships in 2 Weeks
This pump features a 1/2" port size, stainless steel construction, PTFE diaphragm, and maximum flow of 11 gpm.
Technical Specifications
Max Temperature: 220 degrees F
Max GPM: 11
Max PSI: 100
Product Description
11 GPM Metallic Bolted Pump
The E5 Series 1/2" bolted pumps offer excellent chemical resistance and long term reliability. The leak-free bolted construction provides great sealing capabilities when pumping thin liquids. The exclusive unbalanced air valve delivers exceptional on / off / on reliability, and the air valve can be easily refurbished.
Dimensions: 8.39" width x 6.25" depth x 10.05" height
- Maximum flow rate: 11 GPM (41.6 LPM)
- Maximum discharge pressure: 100 psi (6.9 bar)
- Maximum required air inlet pressure: 100 psi (6.9 bar)
- Maximum air consumption: 14 SCFM (23.8 CMPH)
- Maximum temperature: 220 degrees F (105 degrees C)
- Stainless steel wetted material
- PTFE seat, ball, and diaphragm
- Thermoplastic diaphragm style
- Polypropylene non-wetted material
- Port size: 1/2" (12.7 mm)
- Versa-Matic model # E5SP5T559C
