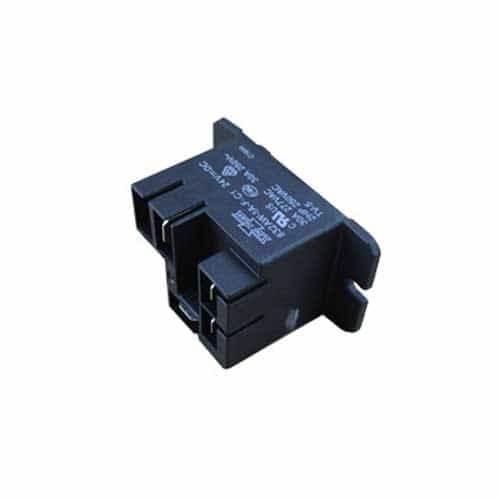

Replacement 24V Power Relay Part

Replace burnt out or defective power relay on your refrigerated Mega-Vendor III vending machine. The 3274 has a coil voltage of 24VDC and quick connect contact and coil terminals.

Specifications:

• Coil Voltage: 24 VDC
• Contact Current Rating: 30 amps
• Relay Contact Form: 1 Form A (SPST-NO)
• Mounting Style: Panel
• Mounting Type: Flange
• Switching Voltage: 240 VAC, 30 VDC
• Contact Termination: Quick Connect Terminal
• Coil Termination: Quick Connect Terminal
• Coil Type: Non-Latching
• Coil Resistance: 660 Ohms
• Coil Current: 36 mA
• Power Consumption: 930 mW
