Pneumatic Liquid Control Mechanism

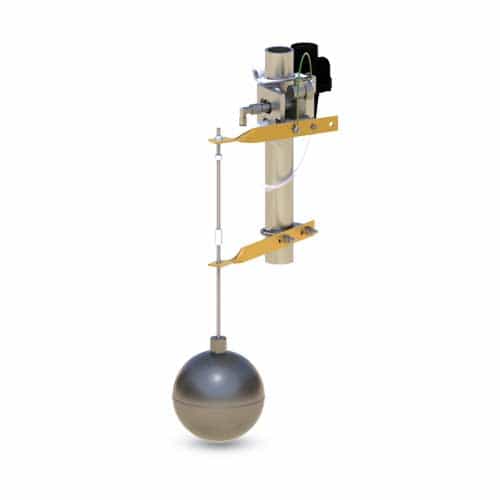

Versa-Matic's 032.V036.000 float-actuated Liquid Level Control unit automatically opens and closes air supply to your pump. Non-electric, pneumatic operation with adjustable operating ranges. Operation can be reversed by installing the top float rod bracket in the opposite direction from position shown.

Features:

• Pneumatic - no electrical power required
• Adjustable - operating range from a few inches to 9 feet
• Easy install and operation
• Quick reversible operation
• Stainless steel float and connecting rod
• ATEX compliant
• Universal - can use with all AODD pumps

How It Works:

1. Float is raised or lowered.

2. Float activates a switch.

3. Pilot valve is activated

4. Regulator turns air on/off to pump

Common Applications and Uses:

• Car Washes
• Tank Filling
• Sump Pumping
• De-watering
• General Liquid Transfer
