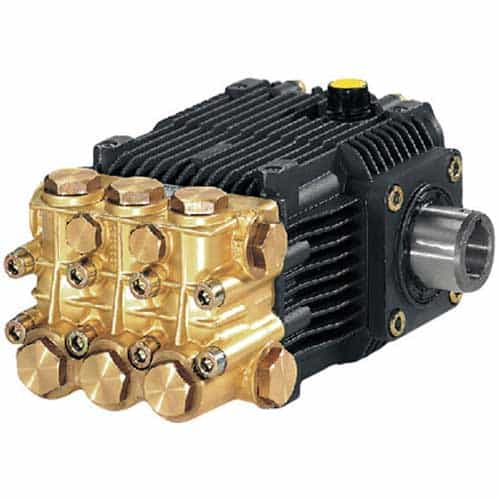

AR North America RKA4G30EF17 Plunger Pump, 4 GPM, 3000 PSI, 1750 RPM
Brand:
Mfr. Model #:
RKA4G30E-F17
KR Part #:
ARRKA4G30EF17
Weight:
21.00 lbs
Out of stock - Pre-Order Now!
Horizontal gas engine triplex plunger pump is rated up to 4 GPM at max 3000 PSI at 1750 RPM. Uses a 1/2"F inlet and 3/8"F discharge thread. Features 1-1/8" hollow shaft with a gas engine flange
Technical Specifications
Max GPM: 4
Stroke: 12 millimeter
Shaft Diameter: 1 1/8 inch
RPM: 1750
Max Temperature: 140 degrees F
Max PSI: 3000
Inlet Port: 1/2 inch
Crankcase Capacity: 15 ounce
Bore: 18 millimeter
Outlet Port: 3/8 inch
Product Description
RKA4G30E-F17 Plunger Pump
The AR RKA4G30E-F17 plunger pumps are designed for a wide variety of high pressure washing applications. They are constructed of die-cast bodies and feature a forged brass head. Internal components include special thick solid ceramic plungers for long life and durability.
Features
- Precision cast cooling fins are anodized for maximum heat dissipation.
- Oversized tapered roller bearings and the precision supports assure proper shaft alignment and maximum life.
- Valve cages of special designed Ultra-Form provide positive seating and extended life.
- One-piece connecting rods are either a special alloy aluminum or bronze oversized for strength and load disbursement
Specifications:
- Max Flow: 4 GPM
- Max Pressure: 3000 PSI
- Power: 7.5 EBHP
- Bore Diameter: 18 mm
- Stroke: 12 mm
- Crankshaft ID Stamp: 4
- Inlet Port: 1/2" F
- Outlet Port: 3/8" F
- Max Temperature: 140° F
- Oil Capacity: 15 oz
- Speed: 1750 RPM
- Shaft: 1-1/8" (Hollow Type, Version E)
