Electric Santoprene Diaphragm Pump

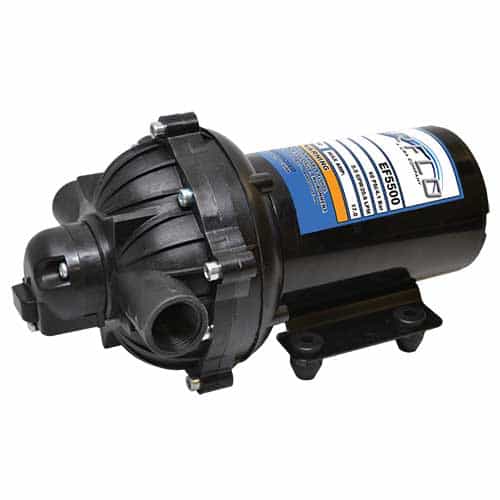

The Everflo EF5500 is a tough and versatile diaphragm pump with a flow rate of 5.5 GPM and maximum pressure rating of 60 PSI. This 12 volt electric pump has a polypropylene housing, Viton valves, and a Santoprene diaphragm. The EF5500 pump is an excellent option for car washes, agricultural sprayers, spot prayers, and other fluid transfer applications.

Specifications:

• Max Flow: 5.5 GPM
• Max Pressure: 60 PSI
• Power Supply: 12V
• Max Amps: 17.0
• Self-Priming: Yes (Up to 8')
• Ports: 1/2" FPT
• Max Fluid Temp: 140° Fahrenheit
• Weight: 5.6 lbs Dry
• Viton valves
• Santoprene diaphragm
• Use replacement head EF5500-KIT
• This pump should not be used with bleach as it voids the warranty and may damage internal parts. Consider these Everflo models if you want to use bleach: EFSW5500, EFSW2200, EFSW4000

Features:

• Polypropylene pump housing and valve plate for longevity and chemical resistance
• Viton¨ valves - Santoprene¨ diaphragm for increased durability and efficiency
• Honeywellª micro switch
• Approved for use with Round-Up¨ and other agricultural brand herbicides
• Zinc plated steel fasteners
• Inline fuse protection
• Automatic shut off when no flow is required, conserving battery life
• Glyphosate compatible
• Standard mounting pattern to fit most tanks
• CE approved

Applications:

• Car Wash
• Farm Spray
• Hand Spray
• Recreational Vehicle
