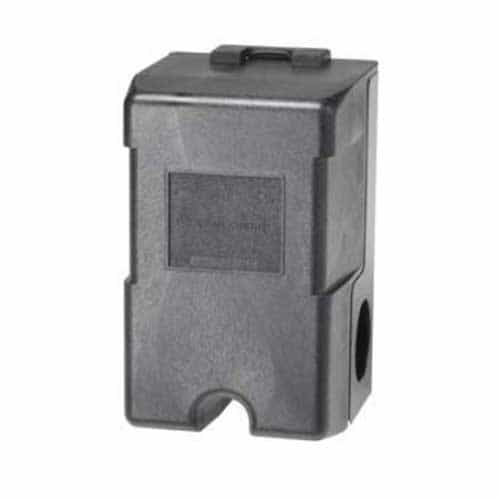

Hubbell Lighting 69WB5 Pressure Switch for Automatic Water Systems - 1/4 FNPT, 80 PSI
Brand:
Mfr. Model #:
69WB5
KR Part #:
ST0328
Weight:
1.00 lbs
GTIN:
783087109278
Availability:
1
Low Inventory Get It Today
Easily adjustable pressure switch with a corrosive resistant cover and straight-through wiring.
Technical Specifications
Horsepower: 5
Inlet Port: 1/4 inch
Max PSI: 80
Voltage AC: 120-480/600
Product Description
W Series Pressure Control Switch
The Hubbel 69WB5 pressure switch allows you to keep pressure within a certain range in an automatic water system. Hubbell brand W series pressure switches provide reliable control for car wash pumping systems and water well pumps.
Specifications:
- Factory Pressure Setting: 30-50 PSI
- Minimum Close Cut-In: 5 PSI
- Maximum Open Cut-Out: 80 PSI
- 1/4" Female NPT pipe
Features:
- Corrosion resistant cover
- No wire looping
- Straight through wiring
- Visible contacts-2 pole, double throw
- No-drift pressure settings
- Captive cover screw
- Easy to adjust
- Two ratings- 3 HP and 5 HP
- UL listed file #14861
- CSA certified file #LR36854
