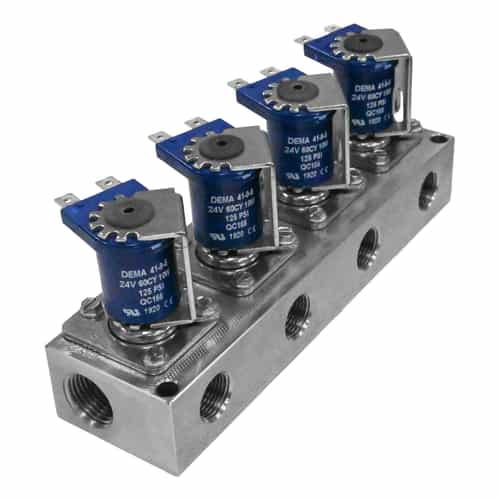

DEMA 464M4.16.3 Stainless Steel Normally Closed 4-Station Manifold Solenoid Valve - 24V AC Spade, 1/2" NPT Inlet, 3/8" NPT Outlet, Viton
Brand:
Mfr. Model #:
464M4.16.3
KR Part #:
SODM4MSS-HF-AC
Weight:
1.25 lbs
Availability:
3
Low Inventory Get It Today
DEMA normally closed mini diaphragm manifold valve with 4 stations. Stainless steel construction with Viton seals. This non-metering valve uses 24-volt AC electrical power with spade coils. It's ideal for water, air, light oil, and non-corrosive/nonexplosive liquids. 1/2" NPT inlets, 3/8" NPT outlet, 3-150 PSI pressure range.
Technical Specifications
Inlet Port: 1/2 inch
Max PSI: 150
Voltage AC: 24
Product Description
DEMA 4-Station Manifold Valve
The DEMA 464M4.16.3 is a 4-station mini diaphragm manifold valve for water, air, light oil, and non-corrosive/nonexplosive liquids. This non-metering manifold valve uses normally closed operation and 24-volt power with a spade coil. It has Viton seals and the manifold is made of stainless steel.
464M4.16.3 Details
- Normally closed
- 24V AC - Spade coil
- 4 stations
- 1/2" NPT inlets
- 3/8" outlet
- 150 PSI maximum pressure
- 3 PSI minimum pressure
- 2.0 Cv flow factor
- Stainless steel construction
- Viton seals
