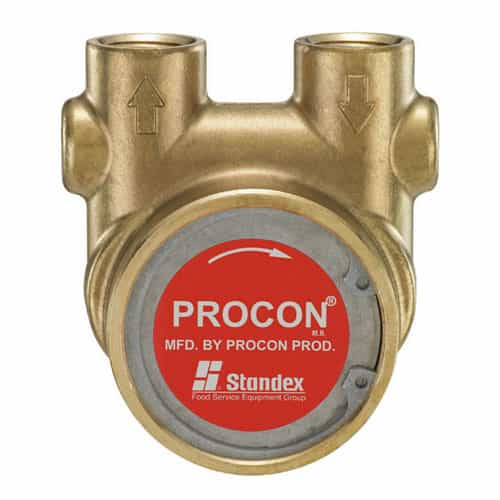

Procon 114B330F11XX Series 4 Brass Rotary Vane Pump - 330 GPH, 1725 RPM, 250 PSI
Brand:
Mfr. Model #:
114B330F11XX
KR Part #:
PPCB2539A
Weight:
3.00 lbs
Out of stock - Pre-Order Now!
Low lead brass pump with self priming capabilities. Operates with minimal vibration. Handle flow rates if 330 GPH.
Technical Specifications
RPM: 1725
Certifications: NSF 169 for potable water use
Inlet Port: 1/2 inch
Max PSI: 250
Max GPM: 5.5
Outlet Port: 1/2 inch
Product Description
Maintenance Free Pump
The Procon 114B330F11XX series 4 rotary vane pump is a positive displacement model made for maintenance-free operation. It has a self priming design and low-lead brass body construction (1.5% maximum lead). Use this pump in car wash circulation, reverse osmosis systems, as a booster pump, in hydraulic systems, and more! It is even suitable for use in solar arrays and desalination equipment. The brass body is compliant with NSF standard 169 when used with potable water. It has a clamp-on design with 1143 bronze coupling.
Dimensions: 4.1" x 3.88" x 4.48"
- Clamp-on design
- 1143 bronze coupling
- Positive displacement
- NSF 169 rated brass body
- 1.5% maximum lead content
- FDA grade nitrile elastomers (type 21 or 2106)
- Clockwise rotation
- Self priming (6 ft. maximum water lift)
- Maximum capacity: 330 GPH
- Maximum discharge pressure: 250 PSI
- Nominal speed: 1725 RPM
- Required horsepower: 0.25 - 1.5 HP
- Inlet: 1/2" NPT
- Outlet: 1/2" NPT
- No relief valve
- Procon item #114B330F11XX
- Weight: 6 lbs.
