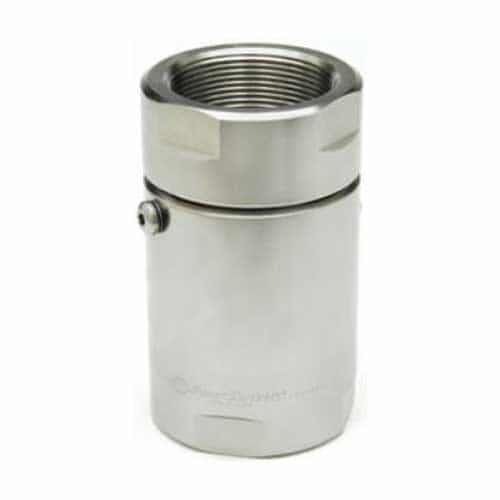

Straight Electroless Nickel Swivel

This swivel is designed with a right-angle change of path to provide free rotation on a straigh° swivel. Engineered to reduce friction and kink risk. Base material and plating utilize carbon steel nickel plating for corrosion resistance with mildly corrosive chemicals. Feature Aflas¨ (Tetrafluoroethylene-Propylene Copolymer) that offers resistance to chemicals and is made for high temperature environments.

Specifications:

• Part Number: SS24FP150XFP150-NI-AL
• Material: Electroless Nickel
• Seal: AFLAS
• Overall Length: 4.050"
• Dim. B: 2.950"
• Diameter: 2.548"
• Stem Thread: 1-1/2" 11-1/2 NPTF
• Body Thread: 1-1/2" 11-1/2 NPTF
• Body Wrench: 2.375"
• Stem Wrench: 2.375"
• Max PSIG: 4000 PSIG
• Through Hole: 1.312

Features:

• Base Material and Plating:

  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
• Seat Material:

  • o (AL) Aflas (Tetrafluoroethylene-propylene copolymer) - Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to  400 deg. F)
• Super Swivels are not recommended for breathing air/oxygen or steam.
• All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure
• Any series stem will fit with the same series body
• Inline Swivels rotating joints provide for minimal friction allowing free movement of hoses and piping in fluid conducting power systems.
• The compact design fits in tight areas.
• Super Swivels one piece barrel and stem with integrated ball bearing race design withstands heavy side loads preventing premature seal wear and leaks.
• This pass-through inline design is the most standard configuration in live swivels.
• Super Swivels connect directly to hose lines without adapters reducing overall costs of hydraulics.
• No Kinks - No Hose Twisting.
