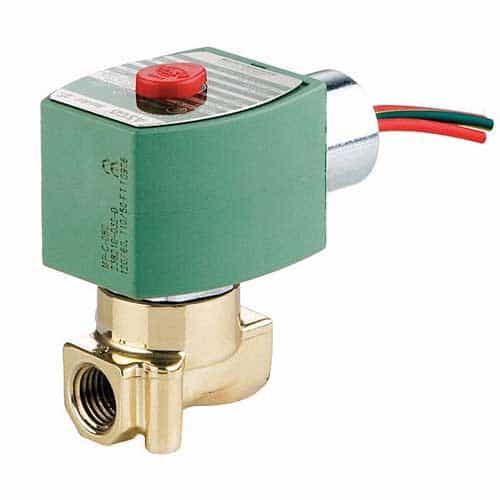

Asco 8262H002 Brass 120V Normally Closed 1/8 in. Solenoid
Brand:
Mfr. Model #:
8262H002 120/60
KR Part #:
SA013
Weight:
0.90 lbs
In Stock
A normally closed two way solenoid valve. Suited for liquid, corrosive, and air/inert gas service. Compatible with 120/60 volt electrical connections.
Technical Specifications
Max Temperature: 180 degrees F
Watts: 6.1
Voltage AC: 120
Inlet Port: 1/8 inch
Outlet Port: 1/8 inch
Product Description
120/60 Volt Solenoid Valve
Asco's 8262H002 is a 2-way, 2-position, normally closed solenoid valve. It has a brass body material and NBR seals. Ideal for applications involving car washes, air compressors, pumps, laundry equipment, and industrial water control.
Dimensions: 2 7/8" x 1 11/16" x 2 7/8"
- 2-way, 2-position
- Normally closed
- For air, inert gases, light oil, water
- 1/8" pipe size
- 185 PSI max. operating pressure for air/inert gas
- 120 PSI max. operating pressure for water
- Indoor/outdoor environmental rating
- 120/60 VAC voltage
- Brass body material
- Coil insulation class F
- NBR seal material
- IP Rating 66
- Maximum fluid temperature: 180 degrees F
- 60 Hz
- 6.1 watts
- Watertight coil enclosure; no junction box
- 1/2" conduit with 18" leads
