ShurFlo 2088-394-154 Intermittent Duty Three Chamber Diaphragm Pump - 115V, 45 PSI, 3.2 GPM

Brand:
Mfr. Model #:
2088-394-154
KR Part #:
SF2088394154
Weight:
5.00 lbs
GTIN:
752324309863
Availability:
3
Low Stock Warning
MSRP
$301.17
Now Only!
$200.77

Positive displacement 3 chamber diaphragm pump. Features an intermittent duty cycle. Polypropylene housing.

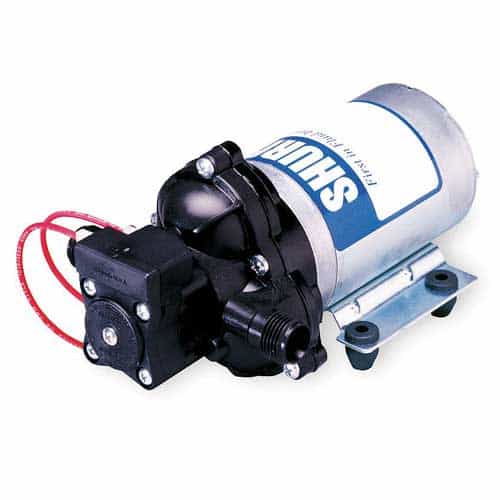

Note: Stock image is representative of Shurflo 2088 Series.




Technical Specifications

Max GPM: 3.2
Max PSI: 45
Voltage AC: 115

Product Description

115VAC Intermittent Duty Pump

This positive displacement diaphragm pump has an intermittent duty cycle and is great for high flow, moderate pressure applications, like agricultural spraying. Intermittent duty pumps are operated within a period of time that would cause the motor to reach its maximum thermal limits. Once obtained, the motor must be allowed to return to ambient temperature before resuming operation. This 2088-394-154 model pump can be mounted in any position, offers easy maintenance, and is  self-priming.

Specifications:

  • 115VAC
  • 45 PSI control pressure
  • 3.2 GPM open flow GPM
  • 1/2"-14 male parallel thread ports
  • Polypropylene housing material
  • Viton valves
  • Diaphragm: viton (switch) and Santoprene (main)
  • Zinc-plated steel fasteners
  • 3 degree cam
  • 1-way operation check valve prevents reverse flow
  • Permanent magnet, thermally-protected motor
  • Max. liquid temperature: 170 degrees F
  • Self-priming up to 9 vertical feet
  • Max. inlet pressure 30 psi
  • UL recognized
