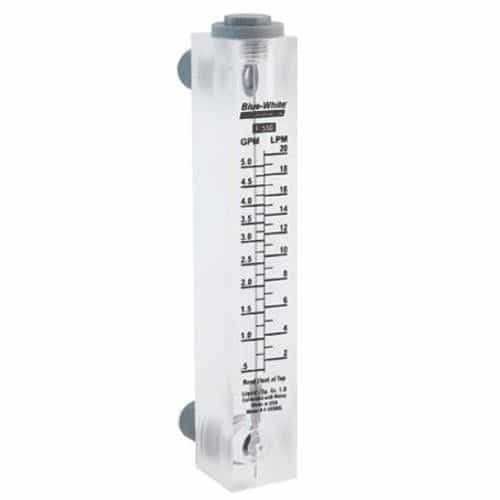

Blue-White F-55200L Acrylic Single Piece Flow Meter - 1 Inch, 2 to 20 GPM
Brand:
Mfr. Model #:
F-55200L
KR Part #:
BWF55200L
Weight:
2.00 lbs
Usually Ships in 3 Weeks
Machined acrylic meter with a direct reading scale. Features 1" MNPT inlet and has a flow range from 2 to 20 GPM.
Technical Specifications
Inlet Port: 1 inch
Max GPM: 20
Max PSI: 250
Max Temperature: 200 degrees F
Product Description
Acrylic Material Flow Meter
The Blue-White F-55200L Flow Meter is a one-piece acrylic instrument that measures the flow rate of water in a pressured system. This panel-mounted flow meter has 1" male NPT inlet and outlet connections and a flow range from 2 to 20 GPM. This instrument has only been tested with water and cannot be guaranteed to work with other fluids.
Specifications:
- 2-20 GPM
- 1" MNPT pipe size
- 250 PSI maximum pressure
- 200° maximum temperature
- Clear acrylic meter body
- 316 stainless steel floats
- Viton o-rings
- Polypropylene lock nut
- Permanent silkscreen scale
- +/- 5% full scale accuracy
Features:
- Acrylic is durable and highly polished
- Annealed for added strength and chemical resistance
- Suitable for outdoor applications in direct sunlight
- Bulkhead nuts attach to inside panel
- White back reflector for easier reading
Applications:
- R.O. & D.I. water systems
- Pollution treatment equipment
- Purging and regulating equipment
- Water and wastewater treatment equipment
- Film and x-ray processing
- Chemigation equipment
