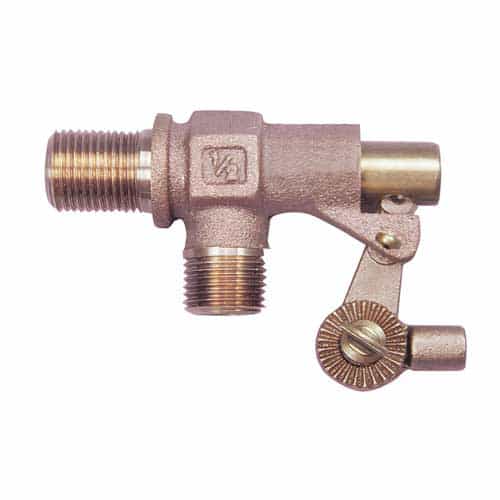

Watts 500TO Bronze Mechanical 1/2 in. Male Heavy Duty Float Valve
Brand:
Mfr. Model #:
500TO (0780005)
KR Part #:
FVW500TO
Weight:
0.75 lbs
GTIN:
098268090888
Out of stock - Pre-Order Now!
Bronze body mechanical float valve with 1/2" M inlet and outlet connections. Maximum 165 PSI working pressure.
NOTE: This is a clearance item with limited inventory. All sales final - no returns.
Technical Specifications
Max GPM: 20
Max PSI: 165
Max Temperature: 180 degrees F
Inlet Port: 1/2 inch
Type: Valve
Product Description
500 Series Bronze Float Valve - 1/2 x 1/2 MNPT
The Watts 500TO Float Valve is used at car washes, industrial environments, and agricultural applications to control high-capacity water flow. This bronze body float valve has a 1/2" MNPT inlet with machine flange and a straight pipe 1/2" MNPT threaded outlet connection. Boasts serrated arms for easy water level adjustment, bronze short and long arms, replaceable seals, and a non-jamming single lever action.
This is a clearance item with limited inventory. All sales final - no returns.
Specifications:
- Body Material: Bronze
- Flow Rate: 20 GPM
- Inlet Connection Size: 1/2" male NPT
- Inlet Pressure: 50 PSI
- Maximum Working Pressure: 165 PSI
- Maximum Temperature: 180° Fahrenheit
- Outlet Connection Size: 1/2" male NPT
- Stem Fitting: 1/4-20
- 500 Series
Features:
- Machined flange
- Serrated arms
- Replaceable seals
- Bronze body
UPC:
- 098268090888
