TeSys Relay

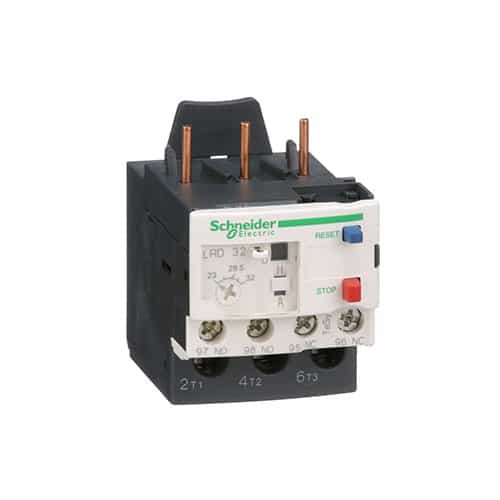

Keep your systems in check with the Schneider Electric LRD32 TeSys differential thermal overload relay. It is designed for use in motor protection applications and is compatible with Schneider part numbers LC1D38, LC1D25, and LC1D32. Use this module on AC or DC electrical networks; it delivers a thermal protection adjustment range between 23 and 32 amps. Conforms to UL, CSA, and IEC standards.

• Part of the TeSys range
• LRD differential thermal overload relay
• For use in motor protection applications
• Use with AC or DC electrical networks
• System voltage: 690 volt AC / 400 Hz
• Push-button stop operation
• Temperature range: -4° to 140° Fahrenheit
• Screw clamp terminal connections
• Mount on plate or rail (additional hardware may be necessary)
• Replaces item number KU3/32-33A

• Schneider Electric item #LRD32
• Weight: 0.27 lbs.
