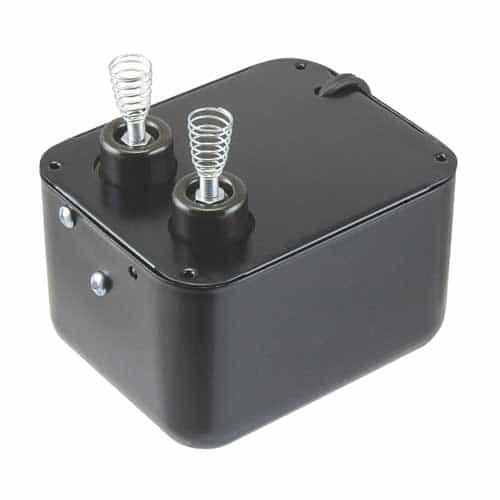

Allanson 2721-668 Oil Burner Ignition Transformer for Wayne Oil Burners - 120V
Brand:
Mfr. Model #:
2721-668
KR Part #:
PW21668
Weight:
7.44 lbs
Availability:
1
Low Inventory Get It Today
120V oil burner ignition step-up transformer with high-temperature wire and high-density porcelain bushings.
NOTE: This is a clearance item with limited inventory. All sales final - no returns.
Technical Specifications
Voltage AC: 120
Type: Electrical Part
Product Description
120V to 10,000V Oil Ignition Transformer
The Allanson 2721-668 Ignition Transformer is used to ignite the fuel in a Wayne oil burner system. This transformer initially draws 120 volts and steps up to 10,000 volts for ignition.
This is a clearance item with limited inventory. All sales final - no returns.
- 120 volt Spark ignition type
- 4 mounting holes in plate
- 23mA @ 120VAC
- 60Hz
- 10,000 volt secondary
- UL Listed and CSA Certified
- Use with Wayne Oil Burners
