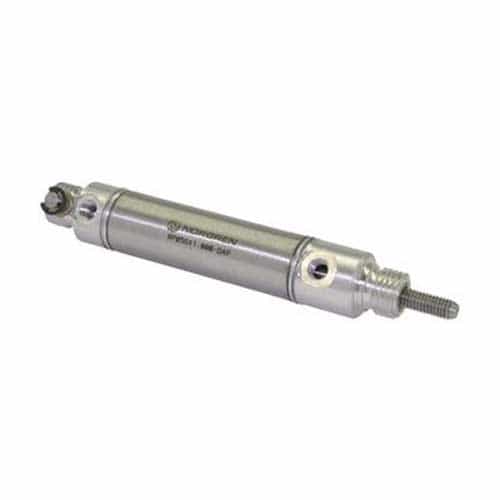

Norgren RP150X6.00-DAP Roundline Plus Stainless Steel Actuator - 1 1/2 in. Bore
Brand:
Mfr. Model #:
RP150X6.00-DAP
KR Part #:
RP150X600-DAP
Weight:
15.00 lbs
Temporarily Unavailable
304 stainless steel body cylinder actuator with a 1.5" bore and a 6" stroke. Double acting pivot style.
Prop 65
Technical Specifications
Stroke: 6"
Max PSI: 250
Max Temperature: 200 degrees F
Bore: 1 1/2 inch
Product Description
1.5" Double Acting Pivot Actuator
The Norgren RP150X6.00-DAP Actuator is from the Roundline Plus series for a variety of air applications with air as the medium. This double acting pivot actuator has a 304 stainless steel cylinder body, a sintered bronze rod bearing, and a chrome-plated carbon steel piston rod. Ideal for operating equipment in an automatic car wash!
Specifications and Details:
- 1 1/2" bore
- 250 PSI maximum operating pressure
- 6" stroke
- Medium: Fitted, lubricated, non-lubricated, or compressed air
- 304 stainless steel construction
- Chrome-plated steel piston rods
- Oil impregnated sintered bronze
- Nitrile rod and piston seals
- -20° to 200° Fahrenheit temperature range
- Pre-lubricated during assembly with a Teflon based grease for non-lube service and long life
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
