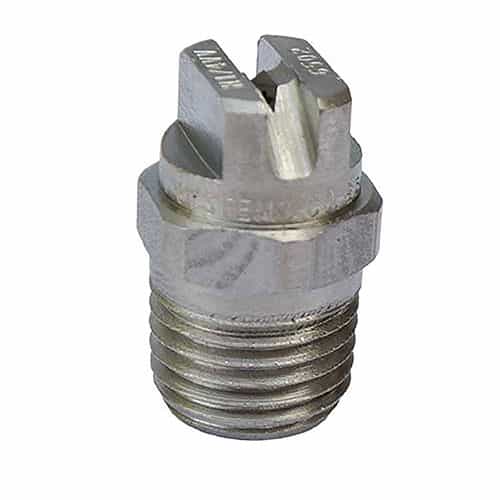

Spraying Systems SAH1/4VVSS2502 Stainless Steel VeeJet Male 1/4 in. Spray Tip - 25 Degree, 02 Capacity
Brand:
Mfr. Model #:
SAH1/4VVSS2502
KR Part #:
SN2502VVSS4
Weight:
0.04 lbs
In Stock
Stainless steel VeeJet spray tip with a 1/4" male inlet, 25° spray angle, and a 02 capacity. Provides a flat fan spray pattern with a tapered edge. Usable for pressures up to 500 PSI.
NOTE: This is a clearance item with limited inventory. All sales final - no returns.
NOTE: This is a clearance item with limited inventory. All sales final - no returns.
Technical Specifications
Spray Angle: 25 degrees
Capacity: 2
Min PSI: 5
Max PSI: 500
Inlet Port: 1/4 inch
Max GPM: .71
Type: Nozzle/Tip
Product Description
1/4" SS VeeJet - 2502
The Spraying Systems SAH1/4VVSS2502 Spray Tip is a stainless steel VeeJet with a 1/4" inlet. It provides a 25 degree spray angle and has a 02 capacity.HVV VeeJets offer a flat fan spray with a tapered edge and uniform distribution. As the liquid exits through the sharp V shape cut of the orifice, it forms into a flat spray pattern. The distribution is tapered from the center of the spray.
This is a clearance item with limited inventory. All sales final - no returns.
- Inlet: 1/4" male thread
- Spray Angle: 25°
- Capacity: 02
- Pressure Range: 5-500 PSI
- Maximum Flow Rate: .71 GPM
- Flow Rate at 40 PSI: .2 GPM
- Material: 303 stainless steel
- Model: HVV
- One-piece design
- Flat fan type, tapered edge spray pattern
