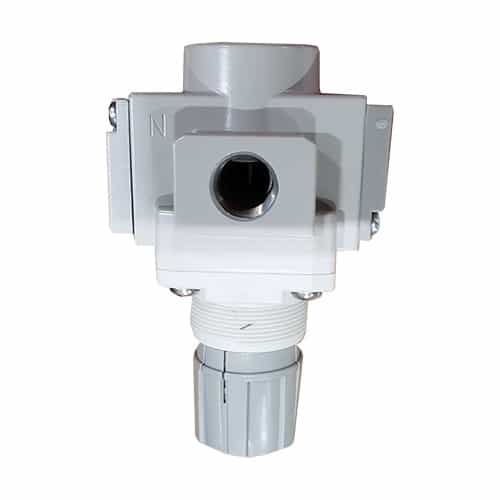

SMC Pneumatics AR20-N02H-Z-B Modulator Air Regulator No Backflow - 1/4 NPT, 145 PSI
Brand:
Mfr. Model #:
AR20-N02H-Z-B
KR Part #:
SMC107
Weight:
0.30 lbs
Availability:
3
Low Inventory Get It Today
Manuals
Modular style air regulation device with a set nut for panel fitting. 145 PSI, 1/4" NPT ports, size 20 body. NOTE: This model does not have a pressure gauge.
Technical Specifications
Max PSI: 145
Max Temperature: 140 degrees F
Inlet Port: 1/4 inch
Product Description
AR Series Air Regulator with Set Nut
The SMC Pneumatics AR20-N02H-Z-B Air Regulator is a sleek, economical air regulator for car wash, garages, detailing shops, and industrial environments. The modular design of the AR series connects with other SMC air preparation equipment.
Specifications:
- Body Size: 20
- Inlet and Outlet Port Size: 1/4" NPT
- Pressure Gauge Port Size: 1/8" NPT
- Maximum Pressure: 145 PSI
- Set Pressure Range: 7.25 to 123.28 PSI
- Temperature Range: 23 to 140° Fahrenheit
- No backflow function
- Locking adjustment knob prevents accidental setting changes
- With set nut for panel fitting
- Does not include a pressure gauge - model with gauge available (part #AR20-N02GH-Z-B)
- Weight: .50 lbs.
