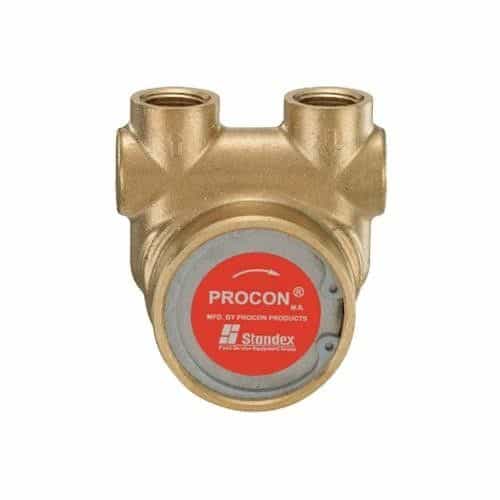

Procon 102A140R11BA225 Series 2 Clamp Mount Brass Rotary Vane Pump - 140 GPH, 250 PSI, 3/8 NPT
Brand:
Mfr. Model #:
102A140R11BA225
KR Part #:
PPCO1503VX
Weight:
2.50 lbs
Usually Ships in 3 Weeks
Brass body rotary vane pump with a positive displacement design. This brass pump has clamp-on mounting, fluorocarbon seals, and 3/8" inlet and outlet ports. Performance details include a 140 GPH flow rate and a 250 PSI maximum pressure rating.
Technical Specifications
Inlet Port: 3/8 inch
Max GPM: 2.33
Max PSI: 250
Product Description
Clamp Mount Brass Pump
The Procon 102A140R11BA225 Rotary Vane Pump is a brass positive displacement pump from the Procon Series 2 line of pumps. This rotary vane pump has low-vibration operation and self-priming capability. It is ideal for water transfer, boosting, and reverse osmosis applications. This brass pump has a 140 GPH flow rate, a max pressure of 250 PSI, and clamp-on mounting.
Procon Series 2 pumps have the same features as Series 1, only without the integral strainer.
Specifications:
- Brass construction
- Rotary vane, positive displacement design
- 3/8" inlet and outlet ports
- 140 GPH flow rate
- 1725 RPM nominal speed
- 151 to 250 PSI pressure range
- 225 PSI relief valve pressure setting
- Clamp-on mount with .188" double flat drive
- Fluorocarbon type 21 elastomer seals
- Plastic hi-temp solid valves
- Standard clearances
- Clockwise rotation
- Non-food grade (1.5% maximum lead) - no agency approval
- Weight: 2.5 lbs.
Features:
- Self Priming
- Maintenance Free
- Low Vibration and Pulsation Characteristics
Applications:
- Water circulation
- Reverse osmosis
- Booster
- Solar applications
- Hydraulic systems
- Desalination
