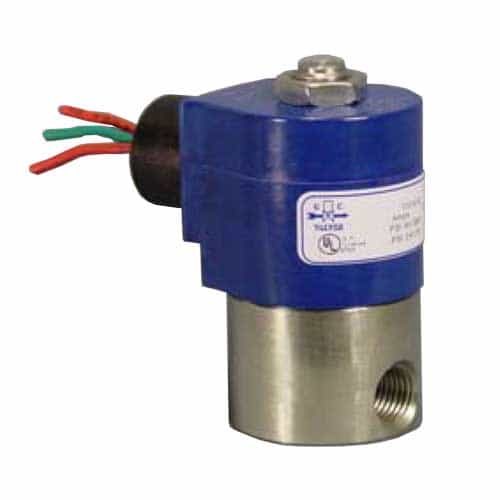

G.C. Valves S301UF24V3BC5 Normally Closed Steel Direct Acting Solenoid Valve - 24V, 700 PSI, 1/4 NPT

Brand:
Mfr. Model #:
S301UF24V3BC5
KR Part #:
GC168
Weight:
1.00 lbs
Usually Ships in 3 Weeks
MSRP
$127.45
Now Only!
$87.30
Stainless steel two-way solenoid valve with normally closed operation. Viton seals, 1/4" FNPT port, 1/16" size orifice.



Technical Specifications

Inlet Port: 1/4 inch
Max PSI: 700
Max Temperature: 125 degrees F
Voltage DC: 24

Product Description

S30 Series 2-Way Stainless Steel Solenoid - 1/4" NPT

Use the GC Valves S301UF24V3BC5 Solenoid to open and close water and chemical lines in your high-pressure car wash system. This is a 24 volt solenoid with a stainless steel body, FKM (Viton) seals, and a normally closed operating mode. This valve has a 1/4" NPT pipe connection and a 1/16" orifice.
Details:

  • Normally closed
  • 2-way direct acting
  • 24 volt DC
  • +/- 10% of applicable voltage
  • 700 PSI maximum pressure
  • F coil class
  • 24" lead wires
  • 32° to 125° Fahrenheit nominal operating temperature
  • 1/4" NPT pipe port
  • Stainless steel housing
  • FKM Viton material seals
  • UL Listed, UL Safety, UL Recognized, CSA Approved
  • Weight: 1 lb.
