Blue-White F-55375LA Flow Meter with Adjustable Valve - 3/8 Inch, .10 to 1 GPM
Brand:
Mfr. Model #:
F-55375LA
KR Part #:
BWF55375LA
Weight:
1.00 lbs

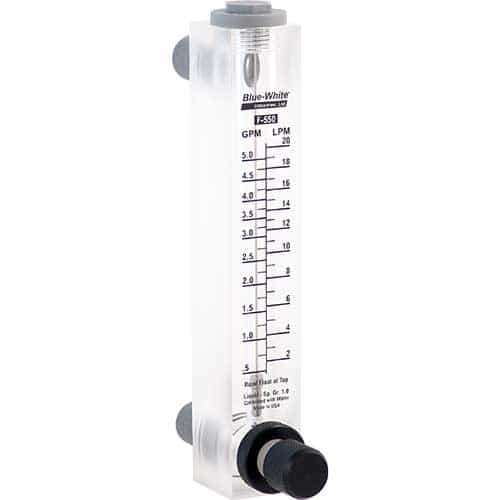

Machined acrylic meter with a direct reading scale to measure and display flow rate. Features 3/8" MNPT inlet and outlet ports and a flow control adjustment knob. NOTE: The image shown is an accurate illustration of the product, but this product will have a scale that goes to 1 GPM.
Technical Specifications
Inlet Port: 3/8 inch
Max GPM: 1
Max PSI: 250
Max Temperature: 200 degrees F
Product Description
Single Piece Acrylic Flow Meter
The Blue-White F-55375LA Flow Meter is a one-piece acrylic instrument that measures flow rate in a pressured water system. This panel-mounted flow meter has 3/8" male NPT inlet and outlet connections and a flow range from .10 to 1 GPM. This version has an adjustment knob on the back for flow control using a needle-type adjustment valve. This instrument has only been tested with water and cannot be guaranteed to work with other fluids.
Specifications:
- .10-1 GPM
- 3/8" MNPT pipe size
- 250 PSI maximum pressure
- 200° maximum temperature
- Clear acrylic meter body
- 316 stainless steel floats
- Viton o-rings
- Polypropylene lock nut
- Permanent silkscreen scale
- +/- 5% full scale accuracy
- Weight: 2 lbs.
Features:
- Acrylic is durable and highly polished
- Annealed for added strength and chemical resistance
- Suitable for outdoor applications in direct sunlight
- Bulkhead nuts attach to inside panel
- Fully adjustable with needle-type adjustment valve - adjustment knob on back
- White back reflector for easier reading
Applications:
- R.O. & D.I. water systems
- Pollution treatment equipment
- Purging and regulating equipment
- Water and wastewater treatment equipment
- Film and x-ray processing
- Chemigation equipment
