5.7" Diameter Light Duty Vacuum Motor

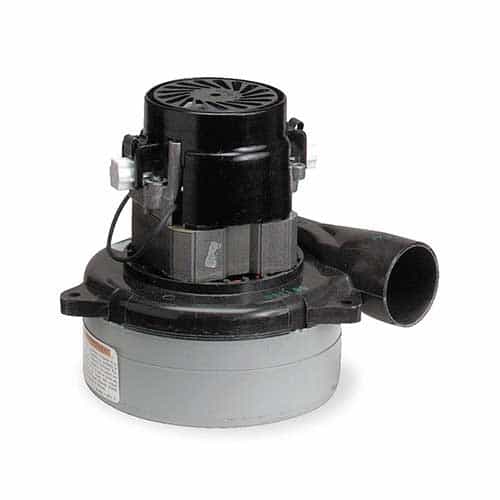

The Ametek 116353-13 motor measures 5.7" in diameter and operates at 240 volts and a maximum of 6.7 amps. This tangential bypass motor features a double ball bearing system, an open motor enclosure design, and a lug motor mounting type. Replacing a failing or damaged motor is a cheaper option than purchasing a new vacuum unit! Get your car wash vacuum back to full functionality!

Specifications:

• 5.7" body diameter

• 7" overall height

• 240 volt AC

• 60/50 Hz

• Single speed

• 2 blower stages

• Open motor enclosure

• 126.3 CFM @ 2" orifice

• 100.5 vacuum (water sealed)

• 1 phase

• 6.7" maximum amps

• 413 maximum air watts

• Lug motor mounting type

• Universal AC/DC motor design

• All angle motor mounting position

• Insurance Class: A

• Double ball bearings

• Thermoset mounting bracket

• Intermittent duty

• UL recognized

• CSA certified

• Weight: 5.65 lbs.

Replacement Brushes:

• 833508-50

Design Application:

• Commercial and residential central cleaning systems

• Car wash vacuum and blower systems

• Equipment operating in environments requiring separation of working air from motor ventilating air

• Designed to handle clean, dry, filtered air only
