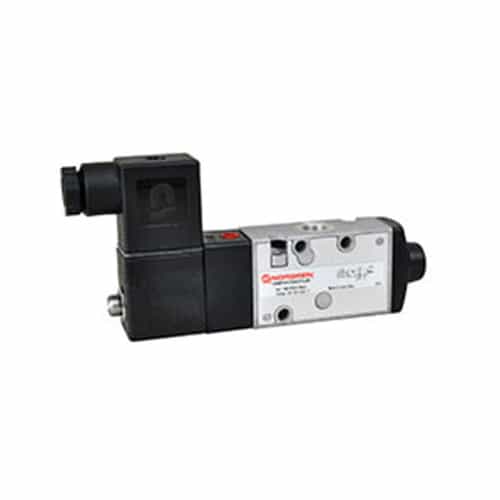

IMI Norgren V62S417A-A313JB Solenoid Actuated Valve with Spring Return, 3/8 in. NPT, 24VDC, 3/2 Normally Closed
Brand:
Mfr. Model #:
V62S417A-A313JB
KR Part #:
SK0600-24DC
Weight:
1.15 lbs
Usually Ships in 5 Weeks
From Norgren, this V62 Series high flow rate direct control pilot valve features easy assembly. It's also maintenance free and boasts an available fixed length manifold.
Technical Specifications
Voltage DC: 24
Max GPM: 1.3 Cv
Min PSI: 29
Max PSI: 145
Min Temperature: 14 degrees F
Max Temperature: 122 degrees F
Product Description
V62 Series 24 VDC Non-Locking Solenoid
The V62S417A-A313JB is a 24 VDC non-locking solenoid valve built by Norgren as part of their V62 Series lineup. It's a low power, high flow option which is maintenance free and comes with an available fixed length manifold. Actuation comes by way of a solenoid pilot / spring return. Media type is compressed air and the port size measures 3/8" NPT.
If you're already familiar with the V62 Series lineup, then the impressive specifications of this solenoid valve will come as no surprise. It touts a minimum PSI of 29 and a maximum of 145. Minimum operating temperature is 14 F while the maximum is 122 F. Valve operation is 3/2.
Solenoid Valve Specs:
- Minimum PSI: 29
- Max PSI: 145
- Minimum Temperature: 14 F
- Max Temperature: 122 F
- Port Size: 3/8" NPT
- Voltage DC: 24
- Actuation: Solenoid Pilot / Spring Return
- Valve Operation: 3/2
- Media: Compressed Air
