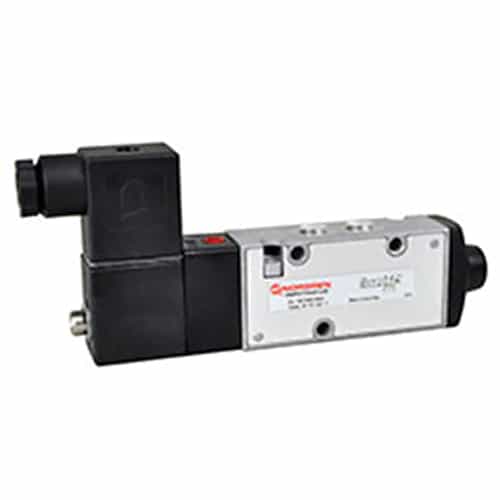

IMI Norgren V62S517A-A313JB Solenoid Actuated/Spring Return Valve, 3/8 in. NPT, 24VDC, 5/2
Brand:
Mfr. Model #:
V62S517A-A313JB
KR Part #:
SK0605-24DC
Weight:
1.15 lbs
Usually Ships in 5 Weeks
This is a compact high flow rate 5/2 function direct control pilot actuated spool valve. Features 3/8" NPT ports and operates at 29 to 145 PSI.
Technical Specifications
Voltage DC: 24
Max PSI: 145
Min PSI: 29
Max GPM: 1.3 Cv
Min Temperature: 14 degrees F
Max Temperature: 122 degrees F
Product Description
V62 Series Directional Control Valve
This manifold system is easy to assemble and features a proven, maintenance free seal system. With low power consumption, extensive manual override options and high flow capacity, this small, non-locking solenoid actuated spring return valve is able to be utilized in a variety of applications.
Specifications:
- 3/8 in. NPT ports
- 24VDC
- 5/2 operation
- Pressure range: 29 to 145 PSI
- Temp range: 14 - 122 degrees F
