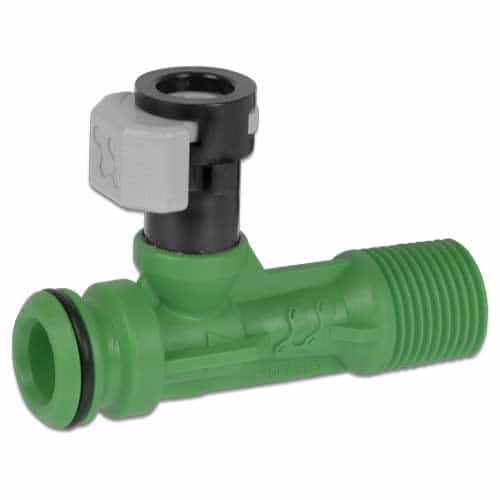

VersaDial 717125 PC2 Composite Quick Connect Injector 5.5 GPM, 1 Barb, Dark Green
Brand:
Mfr. Model #:
717125
KR Part #:
IN717125
Weight:
0.01 lbs
In Stock
Manuals
Single hose barb injector designed for diluting one chemical with water. It has a 5.5 GPM flow rate at 200 PSI (13.9 bar). PC2 x 3/8" MNPT.
Technical Specifications
Max PSI: 250
Min Temperature: 40 degrees F
Max Temperature: 140 degrees F
Product Description
VersaDial Control System Injector
Composite injectors stand up to the most aggressive, yet common, car wash chemicals. The single hose barb injector is designed to dilute one chemical with water. The injector's nozzle and body is made of corrosion-resistant composite material. Each injector in the VersaDial line is color-coded based on the water flow needed for each application.
PC2 injectors are designed for use with MAM valves and VersaDial chemical control devices only.
Features:
- Hastelloy spring
- Teflon check ball
- Exclusive XFC o-ring
- Dark green color
- 3/8" MNPT
- All composite material
Specifications:
- Connection type: PC2 quick connect
- Max pressure inlet/outlet: up to 250 PSI (17 bar)
- Temperature range: 40-140 degrees F
- Number of hose barbs: 1
- Maximum wrench torque: hand tighten only (30 in-lbs.)
- Flow rate at 200 PSI: 5.5 GPM
