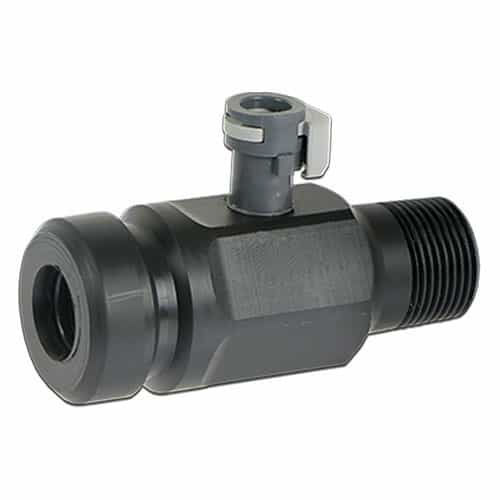

VersaDial 817186 PC3 Composite Quick Connect Injector 12.0 GPM, Single Hose Barb
Brand:
Mfr. Model #:
817186
KR Part #:
IN817186
Weight:
0.50 lbs
Usually Ships in 2 Weeks
Manuals
Single hose barb injector dilutes one chemical, for use with the VersaDial Control System. PC3 x 3/4" MNPT connections. Provides a flow rate of 12.0 GPM (45.2 LPM) at up to 200 PSI.
Technical Specifications
Max PSI: 200
Min Temperature: 40 degrees F
Max Temperature: 140 degrees F
Max GPM: 12
Outlet Port: 3/4 inch
Product Description
VersaDial Control System 12.0 GPM Injector
With a nozzle and body made of corrosion-resistant composite material, Hydra-Flex injectors stand up to the most aggressive, yet common, car wash chemicals. The VersDial single hose barb injector is designed to dilute a single chemical with water. These injectors are designed for use with BAM valves and VersaDial chemical control devices only. Do not use torque wrench for installation - hand-tighten only.
Features:
- Hastelloy spring
- Teflon check ball
- Exclusive XFC o-ring
- All composite material
Specifications:
- Recommended Pressure: 200 PSI Inlet/66 PSI Outlet
- Temperature range: 33°F - 140°F
- Flow rate at 200 PSI: 12.0 GPM
- 3/4" MNPT outlet
- PC3 quick connect inlet (for use with Aqua-Lab HD/XD systems)
