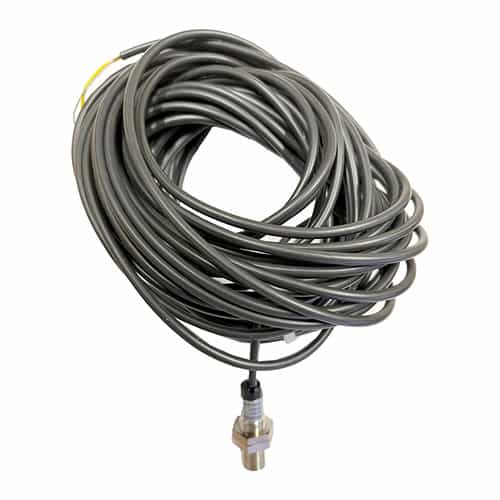

Pantron IR-M12-5M Nickel-Plated Brass Infrared Photoelectric Sensor - 12mm Diameter, 1mm Thread
Brand:
Mfr. Model #:
IR-M12-5M
KR Part #:
PPSR1005-5
Weight:
0.30 lbs
Usually Ships in 2 Weeks
Photoelectric sensor with lens enclosed deep in the nickel-plated brass housing. 12mm diameter, 1mm thread, 5m cable. Excellent for wet environments; 100% submersible and rated IP67.
Product Description
M12 Series Photoelectric Sensor
This Pantron IR-M12-5M Infrared Photoelectric Sensor is part of their M12 Series of sensors. Model IR-M12-5M is a receiver sensor with a nickel-plated brass housing and a 5 meter cable. Specifications include a 12 millimeter diameter and 1 millimeter thread. Pantron instruments are designed for rigorous use in automated environments like automatic car washes. This sensor is 100% submersible, so it's perfect for wet environments.
Pantron sensors boast a specially-designed photoeye with a lens deeply embedded in the protective housing to avoid scratches and dirt. They have a light filter on the front that helps create a powerful, piercing infrared beam. Can be used with any Pantron amplifier or multiplexer.
Specifications:
- 12 millimeter diameter
- 1 millimeter thread
- 5 meter cable
- Nickel-plated brass housing
- Transmit Light, Infrared Modulated (ITL/ITH/ITA): 880nm/870nm/870nm
- Full Transmit Angle (Transmitter)(ITL/ITH/ITA): 12°/20°/6°
- Full Opening Angle: 25°
- Cable Material: PVC
- Light Immunity: 60,000 LUX
- Operating Temperature: -13° to 140° Fahrenheit
- Storage Temperature: -40° to 176° Fahrenheit
- Vibration: 10-55 Hz, 1.5 mm
- Shock: 30 g
- Protection Class: IP67
- Weight: .30 lbs.
