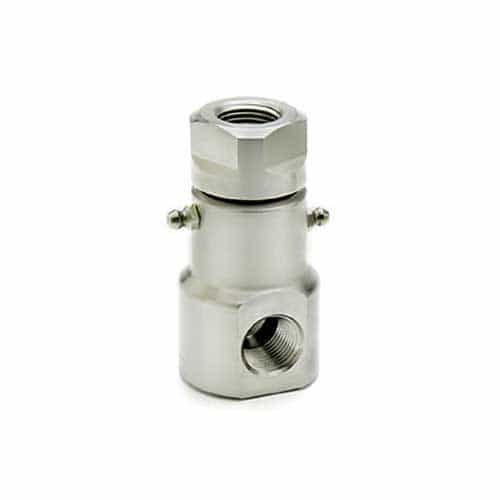

Super Swivels 5923 Carbon Steel Hydraulic 90 Degree Live Swivel - 1/2 F x 1/2 F, 10000 PSI
Brand:
Mfr. Model #:
5923 (9SS8HPFP50XFP50-NI-90V)
KR Part #:
SWS0890HP-V
Weight:
1.20 lbs
Usually Ships in 2 Weeks
Nickel plated carbon steel 90 degree swivel with Viton seals. Has .5" female pipe x .5" female pipe. 10,000 PSI max pressure rating.
Technical Specifications
Max PSI: 10,000
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch
Product Description
10,000 PSI 90° Hydraulic Swivel with Viton
Use the Super Swivels 5923 Hydraulic Swivel to create a tight, leak-free connection in extremely high-pressure hydraulic systems. This 90° swivel is made with nickel-plated carbon steel and has an 1/2" NPTF port on both sides. Tolerates pressure levels as high as 10,000 PSI. Made in America.
Specifications:
- 10,000 PSI maximum pressure1/2" FNPT x 1/2" FNPT
- 90° design
- Nickel-plated carbon steel construction
- 90 durometer Viton seals
- .437 through hole
- 1.048 Swing radius
- 1.125 wrench
- Made in the U.S.A.
- Weight: 1.2 lbs.
Drawing Dimensions:
- O.A.L.: 3.47"
- Dimension B: 2.895"
- Dimension D: 1.842"
