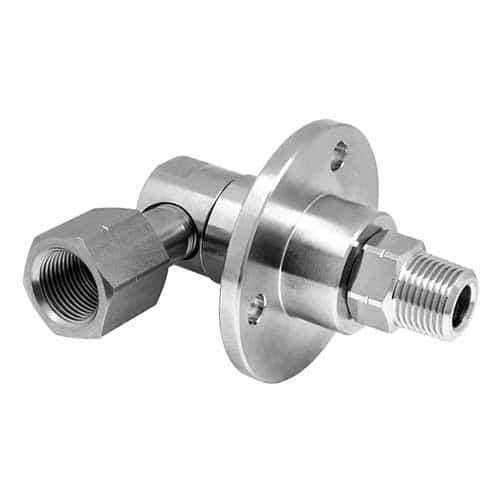

Mosmatic 35.453 Nickel Plated Brass Rotary Union 90 Degree Swivel - 3/8F x 3/8M

Brand:
Mfr. Model #:
35.453
KR Part #:
SWM35453
Weight:
0.80 lbs
Usually Ships in 2 Weeks
MSRP
$204.12
Now Only!
$132.55
Nickel plated brass body rotary union swivel with stainless steel inner components. Tolerates applications up to 4000 PSI pressure. Has 3/8" FNPT x MNPT connections.



Technical Specifications

Max PSI: 4000
Max Temperature: 250 degrees F

Product Description

Nickel Coated 90° Brass Rotary Swivel

The Mosmatic 35.453 Rotary Union Swivel is made with nickel plated brass and has 3/8" female NPT x 3/8" male NPT connection points. This quality swivel is used in high-pressure applications like car washes, industrial cleaning, parts washing, and more.

Technical Specifications:

  • 4000 PSI maximum pressure
  • 3/8" FNPT x 3/8" MNPT
  • 250° Fahrenheit maximum temperature (90° Fahrenheit at 1000 RPM)
  • Nickel plated brass body
  • Stainless steel inner parts
  • NBR O-ring seal
  • 2x radial ball bearings, 1x thrust ball bearing
  • 3-12 pH throughput
  • Medium: filtered 10 microns, compressed air (290 psi)

Features:

  • Maintenance free
  • High precision and quality
  • High speed triple bearing system
  • Body designed for easy installation
