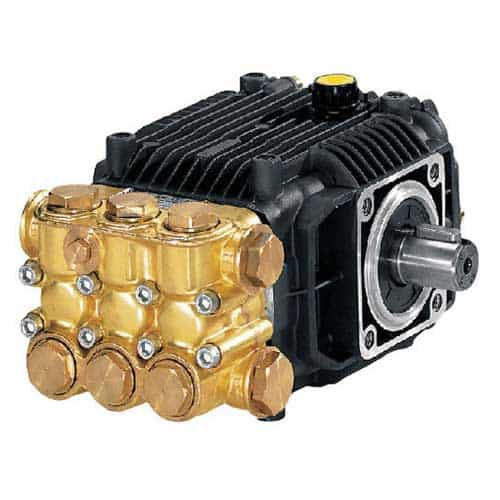

AR North America XM11.17N Triplex Plunger Pump, 2.9 GPM, 3000 PSI

Brand:
Mfr. Model #:
XM1117N
KR Part #:
ARXM1117N
Weight:
14.00 lbs
Usually Ships in 2 Weeks
MSRP
$684.61
Now Only!
$280.86
Horizontal gas engine triplex plunger pump with die-cast body and brass head. Rated up to 2.9 GPM at a maximum pressure of 3000 PSI. Features a gas engine flange for easy connection to power source.



Technical Specifications

Max GPM: 2.9
Max PSI: 3000
Max Temperature: 140 degrees F
RPM: 1450
Bore: 15 millimeter
Stroke: 15.4 millimeter
Shaft Diameter: 24 millimeter
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Crankcase Capacity: 14.5 oz

Product Description

AR XM11.17N Triplex Plunger Pump

Durable horizontal gas engine triplex plunger pump features a die-cast body and brass head. Thick solid ceramic plungers provide for long life for internal components, while anodized precision cast cooling fins optimize heat dissipation. One-piece connecting rods are made of special alloy aluminum, oversized for strength and load disbursement. Features a gas engine flange for easy connection to power supply.

Features

  • Die-cast body and brass head
  • Precision cast cooling finds for maximum heat dissipation
  • Oversized needle bearings and ball to assure positive alignment and centering of the drive in relation to the crankcase.
  • Valve cages made of special designed Ultra-Form for positive seating and extended life

Specifications

  • Maximum Flow Rate: 2.9 GPM
  • Maximum Pressure: 3000 PSI
  • Maximum Temperature: 140°F
  • RPM: 1450 RPM
  • Power: 6.0 EBHP
  • Inlet: 1/2" NPT(F)
  • Outlet: 3/8" NPT(F)
