Giant P230LE1BXUST Triplex Pump, Left Shaft, 2 GPM, 2500 PSI, Unloader, Thermal Relief Valve
Brand:
Mfr. Model #:
P230LE1BXUST
KR Part #:
PUP230LE1BXUST
Weight:
11.70 lbs
Temporarily Unavailable
Manuals

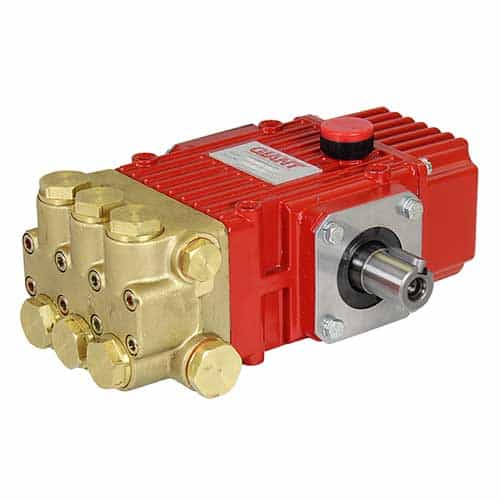

This is a triplex plunger pump with a maximum pressure of 2500 PSI. Produces up to 2.0 GPM of flow. Includes unloader, thermal relief valve, 56C electric motor and 5/8" aluminum coupler. Note: Model is left-side shaft, right-side shaft shown in picture.
Technical Specifications
Max PSI: 2500
Max Temperature: 160 degrees F
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
RPM: 3450
Bore: 18 millimeter
Stroke: 3.4 millimeter
Shaft Diameter: 24 millimeter
Max GPM: 2
Product Description
P230L Pump with Electric Motor
The Giant P230LE1BXUST is a triplex plunger pump for high pressure wash applications that comes with everything you need to plug in and go! Includes a pressure-regulating unloader, thermal relief valve, and 56C electric motor with 5/8" aluminum coupling. See Related Products for compatible replacement and repair parts. Left shaft operation.
Features:
- Left side shaft
- Unloader
- Thermal relief valve
- 56C Electric Motor
Specifications:
@ 1750 RPM
- Flow: 1.1 GPM
- Maximum Pressure: 2000 PSI
@ 3450 RPM
- Flow: 2.0 GPM
- Maximum Pressure: 2000 PSI
Common Specifications
- Maximum Temperature: 160° F
- Inlet Port: (2) 1/2" BSP
- Discharge Port: (2) 3/8" BSP
- Shaft: 24 mm
