Chemical Injecting Diaphragm Pump

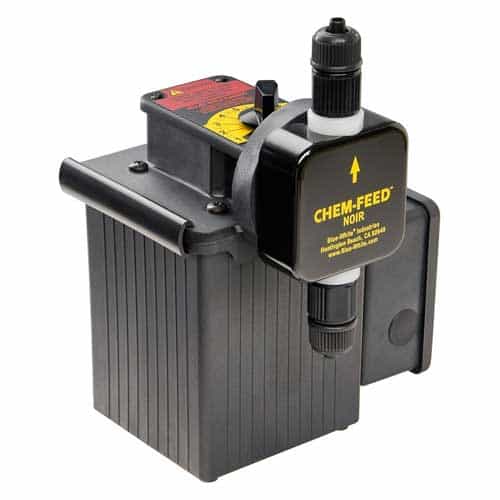

The Blue White C15N443X040V70 metering pump is part of the C-1500N Series designed for effective chemical dispensing. This CHEM-FEED diaphragm pump features a quick-adjusting, high-accuracy mechanical stroke length control. It is adjustable and delivers chemicals at a consistent rate; perfect for environments like car washes that require constant daily chemical dispensing.

Dimensions: 9 1/16" x 4 1/2" x 5 3/4"

Specifications:

• 228.1 GPD/9.5 GPH/.158 GPM

• 115 volt

• 60Hz

• 10 PSI maximum pressure

• 125 RPM maximum speed

• .187" cam stroke length

• 130° Fahrenheit maximum liquid temperature

• Standard output and electrical control options

• Injection-molded PVDF pump head

• Large diaphragm pump head style

• Large PTFE (Teflon)/EP diaphragm style

• Viton elastomers

• PVDF/Polypropylene C-340 foot valve

• A-014A (Polypropylene - 1/2 lb. Spring) injection fitting

• 10 foot water suction lift

• 3/8" suction and discharge ports


Features:

• Economic and versatile

• Permanently lubricated ball bearings and gear motor for smooth, quiet, powerful operation

• Stroke adjustment from 5-100% permits accurate small injections at a high rate per minute

• Outdoor rated enclosure

• Durable, chemical-resistant Val ox (PBT) thermoplastic

• PTFE coated EP diaphragm

• Double-ball inlet and outlet cartridge type ceramic check valves

• No metal springs are used

Applications:

• Car wash

• Soap, wax and detergent injection

• Water treatment and conditioning

• Wastewater treatment

• Biocide feed

• Rural water systems

• Cooling tower & boiler treatment

• Fertilizer and nutrient injection

• Pool chlorination & PH control
