Procon 113A100F11AA Series 3 Stainless Steel Rotary Vane Pump - Clamp-On, 100 GPH, 250 PSI
Brand:
Mfr. Model #:
113A100F11AA
KR Part #:
PPCO1804
Weight:
2.50 lbs
Usually Ships in 3 Weeks

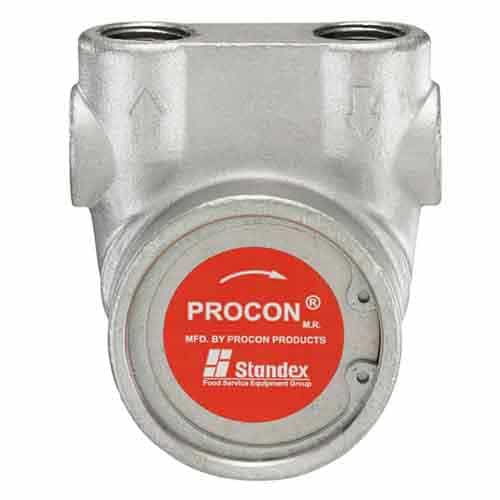

Stainless steel rotary vane pump with 3/8" inlet and outlet ports. This pump has clamp-on style mounting. 100 GPH rated flow, clockwise rotation, 250 PSI maximum pressure.
Technical Specifications
Max GPM: 1.67
Max PSI: 250
Certifications: NSF
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Horsepower: .5
RPM: 1725
Product Description
Clamp-Mount Series 3 Rotary Vane Pump
The Procon 113A100F11AA Rotary Vane Pump is part of the 3 Series and is made of stainless steel. Boasting all of the features you expect from Procon's rotary vane pumps, this version is great for fluids that can't be used with brass pumps. This model is clamp-on mounted, has 3/8" ports, and is usable up to 250 PSI.
Dimensions: 3.56" x 3.49" x 3.86"
Specifications:
- Stainless steel construction
- Clamp-on mounting with .188" double drive
- 100 GPH flow rate
- 151-250 PSI pressure range (170 PSI default setting)
- 1725 nominal speed
- .25 to .50 typical horsepower requirement
- Clockwise rotation
- 6 ft. maximum lift self-priming (water)
- 3/8" inlet
- 3/8" outlet
- FDA nitrile elastomer
- Standard clearances
- Plastic, high-temperature bypass valve type and configuration
- NSF standard
- Weight: 2.5 lbs.
Applications:
- Cold carb circulation - most common use
- Reverse osmosis - second most common use
- Beer chillers
- Pesticide systems
- Solar applications
Features:
- Self-priming
- Low pulsation and vibration
- Maintenance-free
